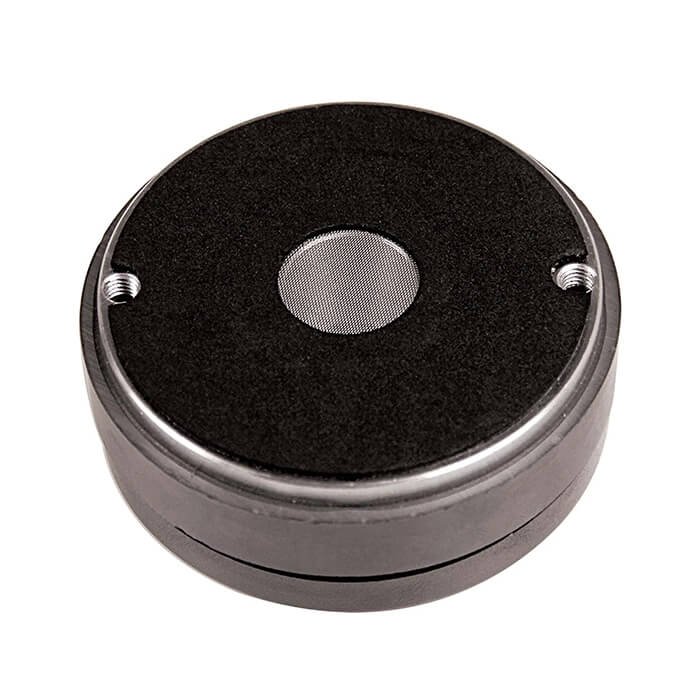

Eminence ASD 1001B 1″ HF Tweeter
1″ Throat Size bolt-on Titanium High Frequency Device 50 W (EIA-426A)
6
Items sold in last 3 minutes
19
People watching this product now!
We deliver within 3hrs within in Nairobi and within 24hrs to all major towns in Kenya.
| SPECIFICATION | |
| Throat Size | 1″, 25.4mm |
| Nominal Impedance* | 8Ω |
| Minimum Impedance | 7.6 ohm @ 2.3 kHz |
| Power Rating** | 50 W (EIA-426A) |
| Resonance | 0.59kHz |
| Usable Frequency Range | 2500Hz-20kHz |
| Recommended Crossover | 2.5 kHz / 18 dBkHz |
| Sensitivity*** | 104.1 |
| Magnet Material | Ferrite |
| Magnet Weight | 12oz, 0.34kg |
| Voice Coil Diameter | 1.3″ / 33mm |
| Voice Coil Former | Aluminum |
| Diaphragm Material | Titanium |
| DC Resistance (Re) | 6.7Ω |
| MOUNTING INFORMATION | |
| Overall Diameter | 3.5″, 88.9mm |
| Driver Volume Displaced | 0.009 cu.ft., 0.26 liters |
| Depth | 2″, 50.8mm |
| Weight | 1.7 lbs, 0.8 kg |
| Mounting Thread | N/A |
| Mounting Holes Diameter | 2X M6 |
| Mounting Holes B.C.D. | 3 in. 76.2 mm |
