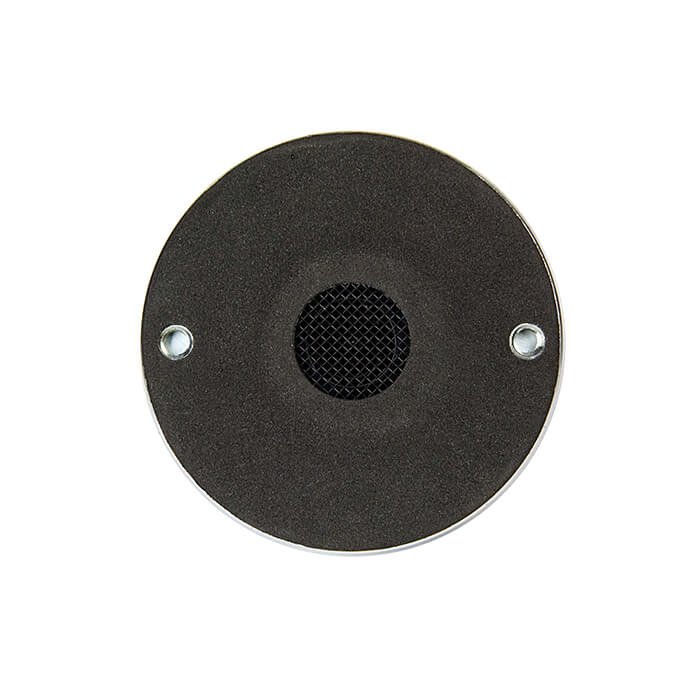

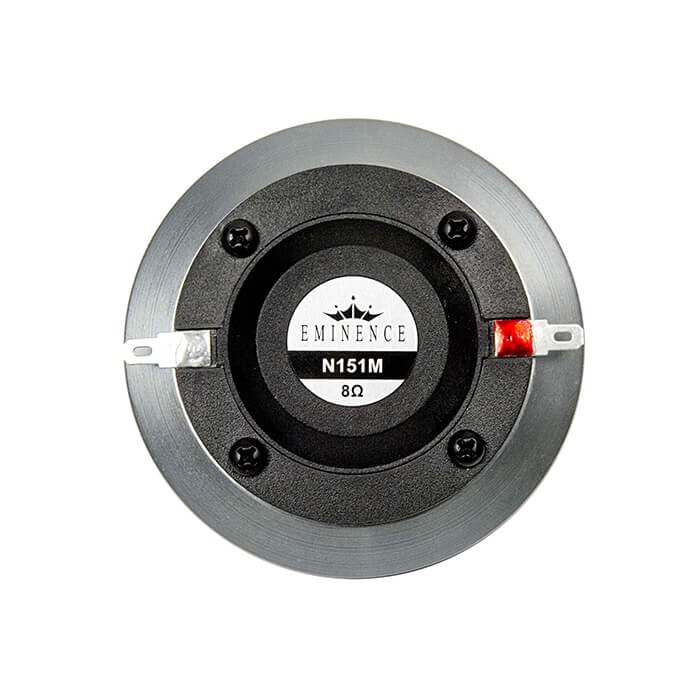

Eminence N151M-8 1″ Ring radiator compression driver
Despite its minute size, the Eminence N151M-8 ring radiator compression driver delivers monumental performance. Utilizing a phase plug design that improves the distribution of forces over the diaphragm surface results in a driver with lower distortion, smoother frequency response, and increased sensitivity as compared to conventional ring radiator designs.
7
Items sold in last 3 minutes
49
People watching this product now!
We deliver within 3hrs within in Nairobi and within 24hrs to all major towns in Kenya.
SPECIFICATION | |
| Throat Size | 1″, 25.4mm |
| Nominal Impedance* | 8Ω |
| Minimum Impedance | 5.2 ohm @ 6.2 kHz |
| Power Rating** | 45 W (AES) |
| Resonance | 1.24kHz |
| Usable Frequency Range | 1800Hz-27kHz |
| Recommended Crossover | 1.8 kHz @ 12 dBkHz |
| Sensitivity** | 111.5 |
| Magnet Material | Neodymium |
| Magnet Weight | 4.5oz, 0.13kg |
| Voice Coil Diameter | 1.5″ / 38.1mm |
| Voice Coil Former | Polyimide |
| Diaphragm Material | Mylar |
| DC Resistance (Re) | 4.1Ω |
MOUNTING INFORMATION | |
| Overall Diameter | 3.6″, 91.4mm |
| Driver Volume Displaced | 0.008 cu.ft., 0.22 liters |
| Depth | 1.45″, 36.8mm |
| Weight | 1.7 lbs, 0.8 kg |
| Mounting Thread | N/A |
| Mounting Holes Diameter | 2X 1/4-20 |
| Mounting Holes B.C.D. | 3 in., 76.2 mm |
