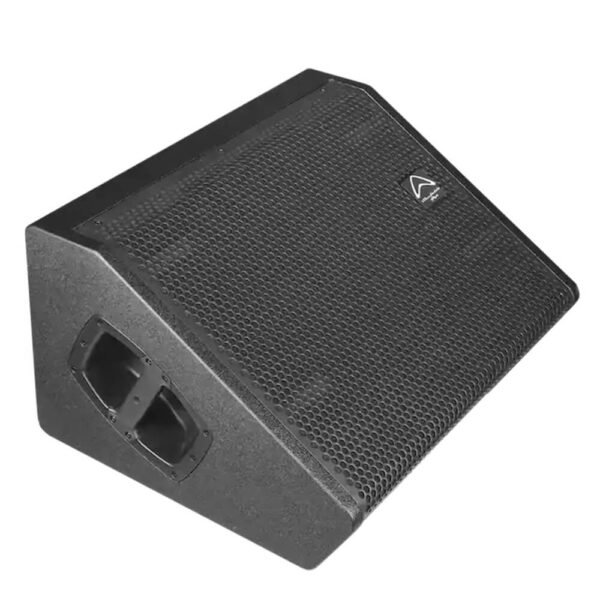

Wharfedale Pro WDG-A12 Active Floor Monitor
FEATURES
- Versatile floor monitors….with more
- Coaxial design
- Deploy as 25° or 60°
- Spherical waveguides
- Optional WPB-W12/ 15 U-Brackets and WPB-7 for easy wall mounting
- Active models with 8 x presets inc FIR plus PRO=LINK software control
- Durable Tough-Tone paint finish. Put your boot on it!!
We deliver within 3hrs within in Nairobi and within 24hrs to all major towns in Kenya.
Coaxial WeDGe monitors, not only for the stage
WDG series has been engineered to re-define the traditional floor monitor. Available in active or passive and with 12” and 15” models, WDG has some handy tricks up its trouser leg……
WDG-12, WDG-15 and active variants WDG-A12, WDG-A15, feature Wharfedale Pro coaxial drivers and a spherical waveguide delivering 70° nominal coverage. All models are versatile due to thoughtful cabinet design. WDG monitors can be deployed as 25° degrees for far field or 60° near field applications. There is also a 35 mm pole socket and WDG can even be deployed on the optional WPB-7 or U- brackets.
Active models feature 8 x DSP presets for easy hands on control, but can also be managed using RS485 protocol with the Wharfedale Pro PRO=LINK software. This allows for detailed remote preset editing and system management. There is also a practical HF Output EQ knob for any real-time tweaks needed on-stage.
Stage, pole, near or far or even on a wall. WDG delivers all the advantages of coaxial in a versatile manner.

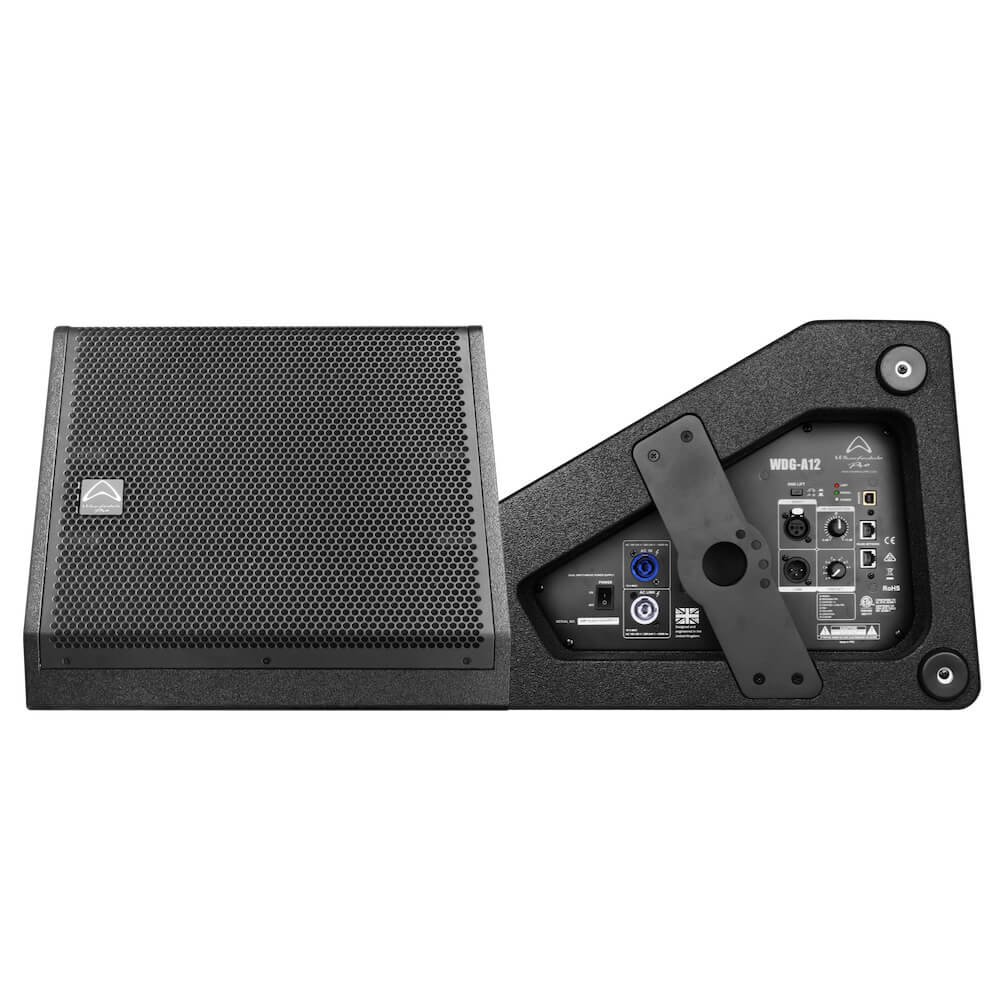

VERSATILE DESIGN
![]()
ACTIVE CONTROL
Active models (WDG-A12 and WDG-A15) include 8 presets with or without FIR, for critical low-latency applications, but the system is also fully controllable using the RS485 protocol through our Wharfedale Pro PRO=LINK control software.
Active models also feature Ground Lift and a handy HF Output EQ allowing for real-time tweaks.
MAKING IT EASIER WITH PICTURES
PRODUCT DIMENSIONS
SPECIFICATIONS
Model Name |
WDG-A12 |
|
System Type |
12” Coaxial Active |
|
Configuration |
Two-way |
|
Frequency Response (+/-3 dB) |
58 Hz – 20 kHz |
|
Frequency Range (-10 dB) |
40 Hz – 25 kHz |
|
Sensitivity (2.83 v / 1 m) |
98 dB |
|
Calculated Maximum SPL @1 m |
127 dB |
|
System Peak SPL |
133 dB* |
|
* level at 1m using pink noise with crest factor 4, with dedicated preset |
|
Drivers |
|
|
LF Size |
304.8mm / 12” |
|
LF Voice Coil Size |
63.5mm / 2.5” |
|
LF Frame Material |
Aluminium |
|
HF Driver Type |
Compression Driver |
|
HF Voice Coil Size |
50.8mm / 2” |
|
HF Exit Size |
25.4mm / 1” |
|
Waveguide Type |
Spherical |
|
Nominal Coverage (H x V) |
70° |
|
Driver Brand |
Wharfedale Pro |
Amplifiers |
|
|
Amplifier Design |
Class D |
|
Power Rating |
800W Peak (700W LF + 100 W HF) 400W Continuous (350 W LF + 50 W HF) |
|
Thermal Protection |
Amplifier Shut Down. Auto Reset |
|
Low Line Voltage Shut Down |
60% Nominal Line Voltage |
|
Driver Protection |
Independent LF/HF RMX and Peak Limiters |
|
DC and Short Protection |
Yes |
|
Clip Limiter |
Yes |
|
Limiter Indicator |
Red LED |
|
Signal Indicator |
Green LED |
|
Power/Active Indicator |
White LED |
|
Find Function Indicator |
Blue LED |
|
Input Sensitivity |
+4 dBu |
|
Maximum Input Level |
+18 dBu |
|
Input Impedance |
Balanced: 10 KΩ |
|
AC Power details – Power Supply |
AC 100-120V~ and 220-240 V~, 50/60 Hz Automatic |
|
Input |
Balanced socket XLR |
|
AC Power |
PowerCon In/Out |
Construction |
|
|
Rigging & Hardware |
35mm Pole Mount 4 x M8 Threaded points for WPB-7 or PowerdriverTM Series 100 products |
|
Optional Accessories |
Heavy Duty transport soft Cover WDG-W12 Horizontal Flying Yoke |
|
Vertical Splay Angle Range |
N/A |
|
Handles |
1 on top |
|
Enclosure |
Trapezoid |
|
Enclosure Material |
15 mm Plywood |
|
Finish |
Tough-Tone Finish |
|
Colour |
Black (white available on request – Pricing and availability subject to change) |
|
Grille Material & Finish |
Powder coated steel |
|
Monitor Angle (degrees) |
60° – 25° |
Dimensions – (Unpacked) |
|
|
Height |
310mm / 12.2” |
|
Width |
540 mm / 21.3” |
|
Depth |
471.7 mm / 18.6” |
Dimensions – (Packed) |
|
|
Height |
635 mm / 24.9” |
|
Width |
560 mm / 22.1” |
|
Depth |
398 mm / 15.7” |
Weight |
|
|
Net Weight (kg / lbs) |
20.16 kg / 44 lbs |
|
Gross Weight (kg / lbs) |
23.16 kg / 50.6 lbs |
