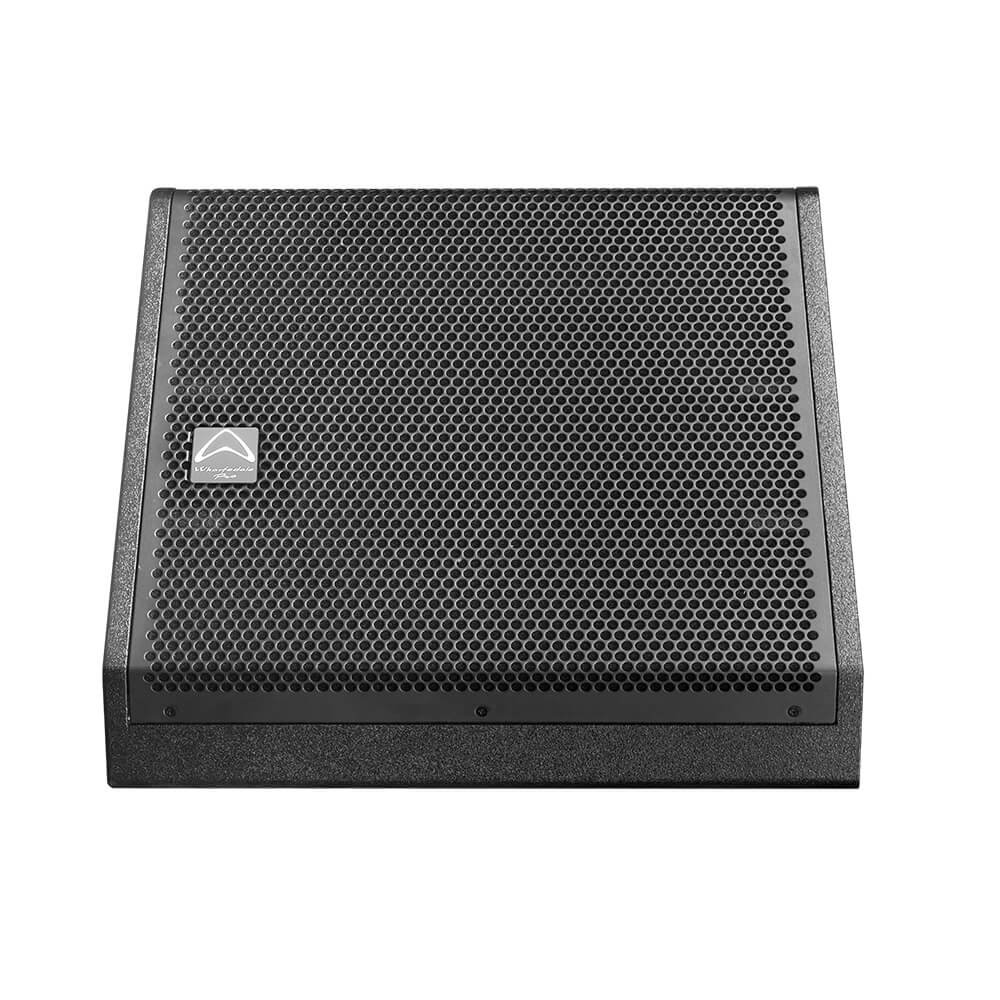

Wharfedale Pro WDG-12 Passive Floor Monitor
- 250 W Continuous
- 500 W Programme
- 1000 W Peak
- 127 dB Max SPL at 1 m
- 12″ Wharfedale Pro coaxial driver
- Spherical waveguide
- 70° nominal dispersion
5
Items sold in last 3 minutes
29
People watching this product now!
Put your boot on it
WDG series has been engineered to re-define the traditional floor monitor. Available in active or passive and with 12” and 15” models, WDG has some handy tricks up its trouser leg……
WDG-12, WDG-15 and active variants WDG-A12, WDG-A15, feature Wharfedale Pro coaxial drivers and a spherical waveguide delivering 70° nominal coverage. WDG-X12 and WDG-X15 use Beyma coaxial drivers and are coupled to a rotatable 80° x 40° Constant Directivity waveguide.
All models are versatile due to thoughtful cabinet design. WDG monitors can be deployed as 25° degrees for far field or 60° near field applications. There is also a 35 mm pole socket and WDG can even be deployed on the optional WPB-7 or U- brackets.
Active models feature 8 x DSP presets for easy hands on control, but can also be managed using RS485 protocol with the Wharfedale Pro PRO=LINK software. This allows for detailed remote preset editing and system management. There is also a practical HF Output EQ knob for any real-time tweaks needed on-stage.
Stage, pole, near or far or even on a wall. WDG delivers all the advantages of coaxial in a versatile manner.
Pick your angles
All WDG models can be deployed as either
60° for near field….
or
25° for far field.
or on a pole
On stage or front of house.
All WDG models feature a 35 mm pole socket for maximum versatility.
or on a WALL
With 2 optional hardware systems to mount a WDG on a wall, this ‘floor monitor’ is not only for the stage!
WPB-7
WDG-W12 / W15
CoAXIAL by design
WDG series use coaxial drivers.
The design of these drivers improves sound coherence by aligning the high- and low-frequency sources, reducing phase issues, and delivering a more consistent audio experience with wider dispersion.
WDG-12 and WDG-15 use Wharfedale Pro drivers coupled to a 70° conical waveguide.
WDG-X12 and WDG-X15 use Beyma drivers coupled to an 80° x 40° rotatable constant directivity waveguide.
SPECIFICATIONS:
| Model Name | WDG-12 |
| System Type | 12″ coaxial passive |
| Configuration | Two-way |
| Frequency Response (+/-3 dB) | 58 Hz – 20 KHz |
| Frequency Range (- 10 dB) | 40 Hz – 25 KHz |
| Sensitivity 2.83 V/1 m | 98 dB |
| Calculated Maximum SPL @1 m | 127 dB |
| System Peak SPL* | 133 dB |
| *level at 1 m using pink noise with crest factor 4, with dedicated preset. | |
| System Rated Impedance | 8 Ω |
| LF Size | 12’’ |
| Voice Coil Size (mm / inches) | 2.5″ |
| LF Frame Material | Aluminium |
| HF Driver Type | Compression Driver |
| Voice Coil Size (mm / inches) | 2.0” |
| Exit Size (mm / inches) | 1.0” |
| Diaphragm Material | Titanium |
| Waveguide Type | Spherical |
| Nominal Coverage (H x V) | 70° |
| Special Features | |
| Driver brand | Wharfedale Pro |
| System Continuous Power (W) | 250 |
| System Programme Power (W) | 500 |
| System Peak Power (W) | 1000 |
| Crossover Frequency | 2 KHz |
| Recommended HPF = BW 18 dB/oct. | 35 Hz |
| Rigging & Hardware: | 35 mm Pole-mount |
| 4 x M8 threaded points for WPB-7 or PowerdriveTM Series 100 products | |
| Optional Accessories | WDG-12 horizontal flying yoke |
| Heavy-duty transport soft cover | |
| Handle | 1 on top |
| Cabinet Type | Polygonal shape |
| Enclosure Material and finish | 15 mm plywood |
| Tough-Tone | |
| Colour Options | Black paint, White on request |
| Grille Material & Finish | Powder coated steel |
| Monitor Angle (degrees) | 60° – 25° |
| Dimensions – Unpacked (mm / inches): | |
| Height | 310 mm / 12.2″. |
| Width | 540 mm / 21.3″ |
| Depth | 471.7 mm / 18.6″ |
| Dimensions – Packed (mm / inches): | |
| Height | 635 mm / 24.9″ |
| Width | 560 mm / 22.1″ |
| Depth | 398 mm / 15.7″ |
| Net Weight | 20.0 Kg / 44 lbs |
| Gross Weight | 23.0 Kg / 50.6 lbs |
