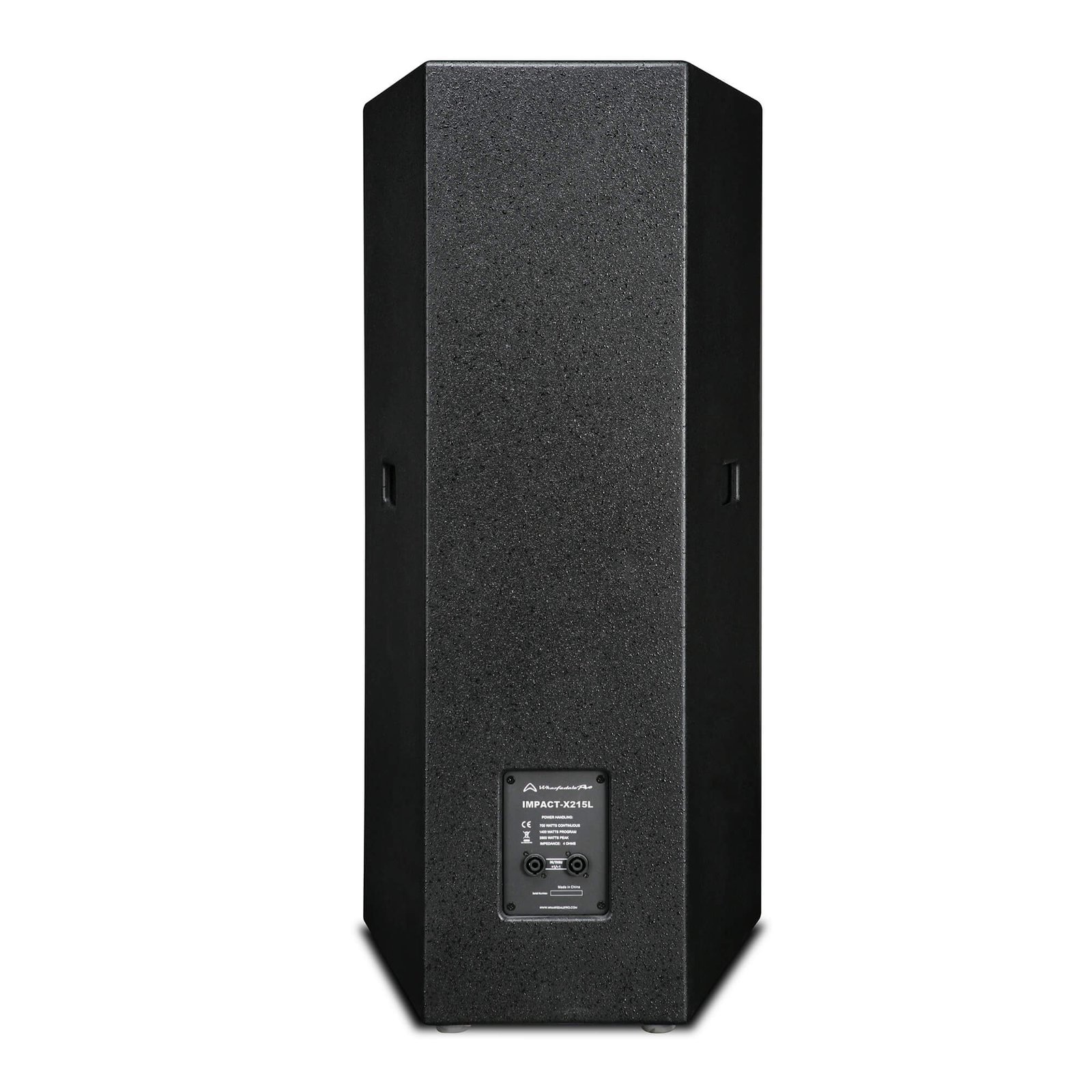

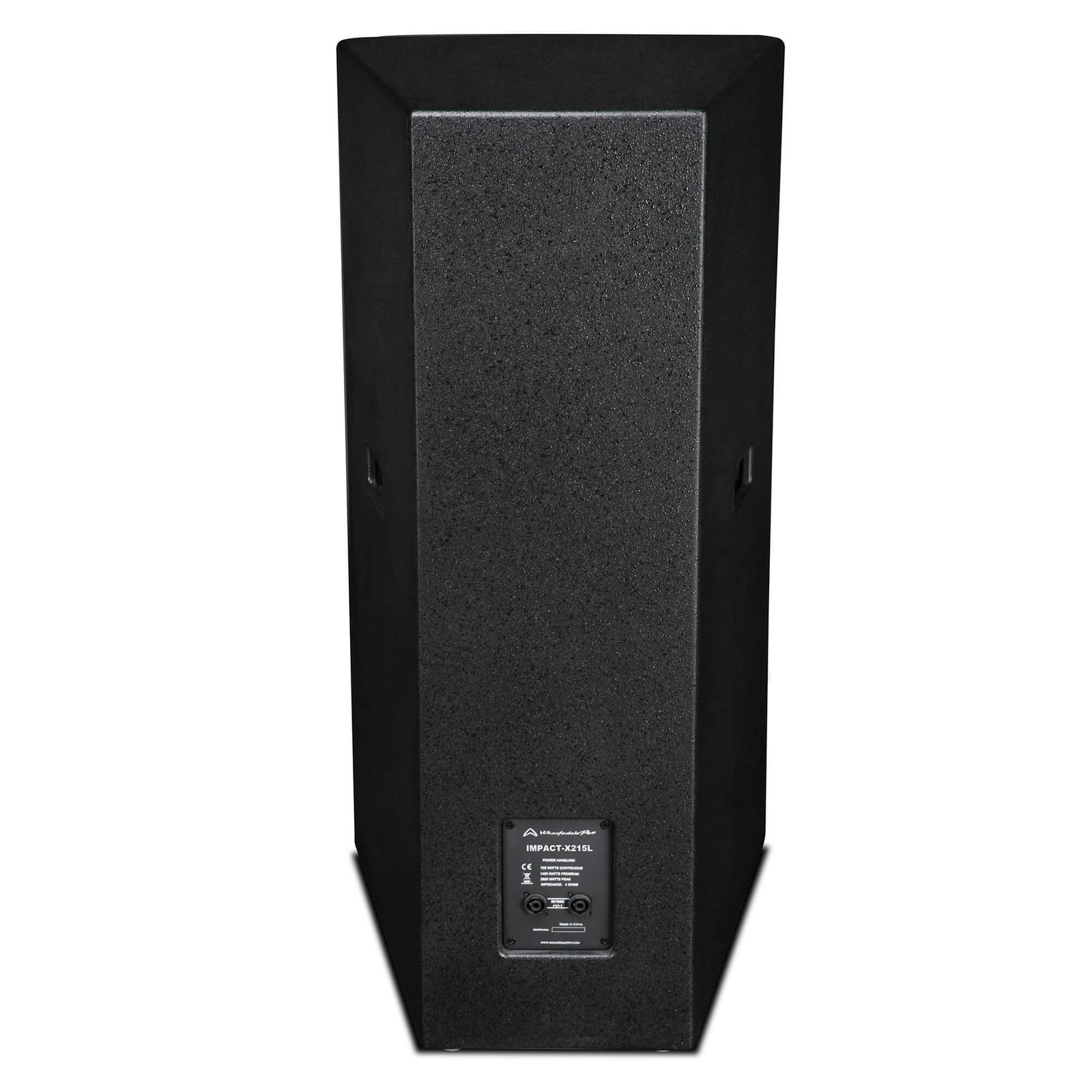

Wharfedale Pro IMPACT-X215L Passive Speaker
Key Features:
- Dual 15″ (large cabinet)
- 135 dB max SPL @ 1 meter
- 1.75″ HF compression driver
- 2.5″ LF voice coils
- MDF construction (plywood cabinet)
- Durable black paint finish
- Combi connector inputs (2 x speakON compatible / Thru inputs)
- 700 watts AES (RMS)
- 1400 watts Programme
- 2800 watts Peak
We deliver within 3hrs within in Nairobi and within 24hrs to all major towns in Kenya.
The Wharfedale Pro IMPACT-X215L is a Passive Speaker that delivers high power capacity and clarity, producing 700W RMS (2800W peak) of power with a low-end frequency of 45Hz. A 1.75″ titanium diaphragm compression driver offers a powerful yet neutral sounding high end for high frequency. Both the HF and LF drivers were designed specifically for this series of loudspeakers, and they were engineered and acoustically matched to a highly robust wooden cabinet.
ELIPTICAL WAVEGUIDES
Full range models feature a 90° x 60° Elliptical Waveguide
In real-world terms this means that the higher frequencies can be heard with definition at 90° in the horizontal plane, and 60° in the vertical.
All full range models in the Impact-X series use this same elliptical waveguide design which makes for controllable coverage when using multiple Impact series loudspeakers.
IRIS X COMPRESSION DRIVERS
The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance. Impact-X loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity. The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.
A hot transducer wastes energy, risks damage and distorts. IRIS X reduces this through improved heat dissipation and improved efficiency.
In real-world terms, IRIS X transducers deliver higher SPL with less distortion. They lead the market with specifications and are designed and built entirely within Wharfedale Pro.
Increased Radius Increased Sensitivity
ROUTED LOGO
Impact-X features a routed Wharfedale Pro logo.
It is a logo to be proud of. A logo that lets your audience know that the sound of your even will be of the highest possible quality.
COMBI JACK INPUTS
A handy feature are the NL2 combi jack connectors which are used in all models of Impact-X.
These accept both speakON compatible cabling or 1/4″ jack speaker cables. It means that you’ve usually got the right cables on hand!
SPECIFICATIONS
| Model Name | IMPACT-X215L |
| System Type | Passive |
| Configuration | Two-way |
| Frequency Response (+/-3 dB) | 45-18 KHz |
| Frequency Range (-10 dB) | 40-20 KHz |
| Sensitivity (2.83 v / 1 m) | 101 dB |
| Calculated Maximum SPL @1 m | 135 dB |
| System Rated Impedance | 4 Ω |
| Low Frequency Transducer | |
| Size | 2 x 381 mm / 15″ |
| Voice Coil Size | 65 mm / 2.5” |
| Rated Impedance | 2 x 8 Ω |
| LF Power (re:AES2-2012) | 2 x 350 W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Voice Coil Size | 44 mm / 1.75″ |
| Exit Size | 25 mm / 1″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8 Ω |
| HF Power (re:AES2-2012) | 40 W |
| Nominal Coverage (H x V) | 90° x 60° |
| Nominal Impedance | 8 Ω |
| Power | |
| System Continuous Power | 700 W |
| System Programme Power | 1400 W |
| System Peak Power | 2800 W |
| Crossover frequency | 2.2 KHz |
| Input Connector | 2 x NL2 combi jack |
| Hardware | |
| 2 carry handles | |
| Enclosure | |
| Enclosure Material and finish | MDF |
| Colour Options | black paint |
| Grille Material & Finish | steel |
| Dimensions – Unpacked | |
| Height | 1058 mm / 41.7″ |
| Width Front | 502 mm / 19.8″ |
| Width Rear | 282.5 mm / 11.1″ |
| Depth | 467 mm / 18.4″ |
| Dimensions – Packed | |
| Height | 1125 mm / 44.3″ |
| Width Front | 577 mm / 22.7″ |
| Width Rear | 327 mm / 12.9″ |
| Depth | 534 mm / 21.0″ |
| Weight | |
| Net Weight | 37.1 kg / 81.6 lbs |
| Gross Weight | 41.6 kg / 91.5 lbs |
