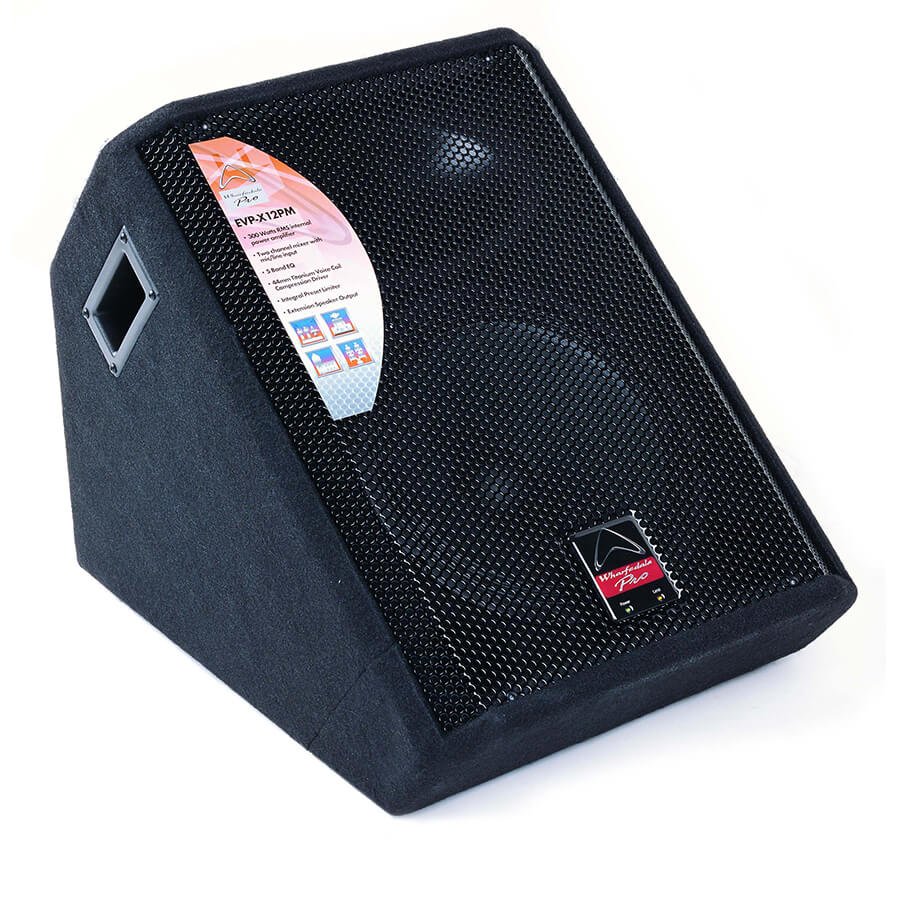

Wharfedale Pro EVP-X12PM Active Floor Monitor
- 12″ Active bi-amplified floor monitor
- 90 x 60 Elliptical Wave Guide Horn with 1.75″ (44mm) titanium diaphragm driver
- High power handling, high efficiency
- ProTech™ Driver
- 5 Band Graphic EQ
- XLR / Jack Combi Input
- XLR Output
- Powered output for additional passive monitor
- Durable black carpet covering
2
Items sold in last 3 minutes
50
People watching this product now!
Delivering everything that made the EVP-X Series a best seller, the EVP-X12PM is built for the stage, with even more convenience. Complete with the same pro-tech drivers, elliptical waveguide horn technology and of course, tonnes of power the EVP-X12PM is also powered, without the need for an amplifier. Specially developed for on-stage monitoring, the amplifier module includes a 5-band EQ and a separate amplified output to connect to an additional stage monitor such as the EVP-X12M.
KEEP IT TIDY
EVP-XPM active floor monitors have been specifically designed to give maximum versatility on stage.
These are not just active monitors turned sideways but are built specifically as floor monitors. The inclusion internal amplification, a 5-band graphic EQ and well thought out connectors, reduces unnecessary cabling and additional hardware on stage. The balanced input uses a combi XLR/jack connector so it’s easy to always find suitable connection cables.
POWER OUT
EVP-XPM’s also feature a unique powered ‘Speaker output’ jack. This allows for connection to a passive secondary monitor (such as the EVP-X15M MKII) without the need for additional amplification or complex cabling. The speaker output system is designed to drive a passive loudspeaker with 8 ohm impedance.
A LITTLE LOVE AND PROTECTION
Externally the EVP-XPMs are protected by a durable carpet finish.
Internally the Dynamic / AGC protection circuitry provides extreme protection at both the driver and the amplifier stage so the EVP-XPM can be played at maximum levels over long periods without fear of system failure. The Green LED on the front of the EVP-XPM illuminates when the AGC is activated, similar to the orange LED on the front of the amplifier.
A LITTLE ON THE SIDE
Looking closely at the connectors and controls
SAME POWER, NO EXTERNAL AMPLIFIER
The power amplifier section of the EVP-XP series uses Class A/B topology and is designed to integrate seamlessly, giving the optimum smooth performance across the range. The EVP-X12PM model contains the higher rated 300W continuous / 500W peak amplifier.
PROTECT
Dynamic / AGC protection circuitry provides extreme protection at both the driver and the amplifier stage so the EVP-XPM can be played at maximum levels over long periods without fear of system failure. The Green LED on the front of the EVP-XPM illuminates when the AGC is activated, similar to the orange LED on the front of the amplifier.
CONTROL AND EXPAND YOUR SOUND
The EVP-X12PM features a 5 band graphic equalizer accessible on the side of the unit. This allows the user more control over feedback and unwanted noise when monitoring. Both loudspeakers also have the added benefit of a ‘Speaker Out’ output which allows the user to add on or to ‘daisy chain a passive EVP-X12M / 15M into the system directly from the EVP-X12PM.
SPECIFICATIONS
| Configuration | 2-way Bi-Amplified |
| High Frequency Transducer | 1.75″ Titanium Compression Driver |
| Low Frequency Transducer | 12″ |
| Frequency Response | 50Hz – 20kHz |
| Power (RMS/Peak) | 300W / 500W |
| EQ | 5-Band |
| Enclosure Finish | Black Carpet |
| Input | 1 x XLR Jack / Combi |
| Output | 1 x XLR, 1 x 6.3mm Jack (Powered output) |
| Protection | Dynamic / AGC protection circuitry |
| Dimensions (H x W x D) | 560mm X 424mm X 441mm |
| Net Weight | 22.5kg |
| Gross Weight | 25.1kg |
