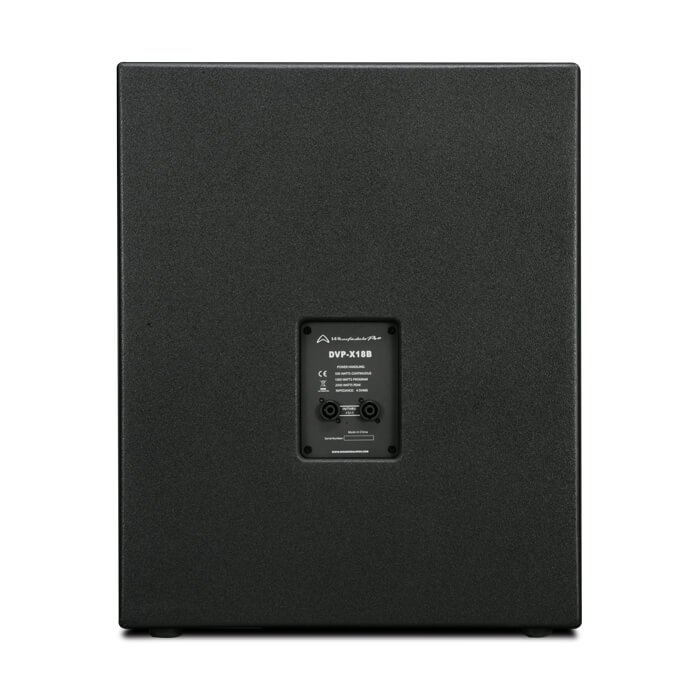

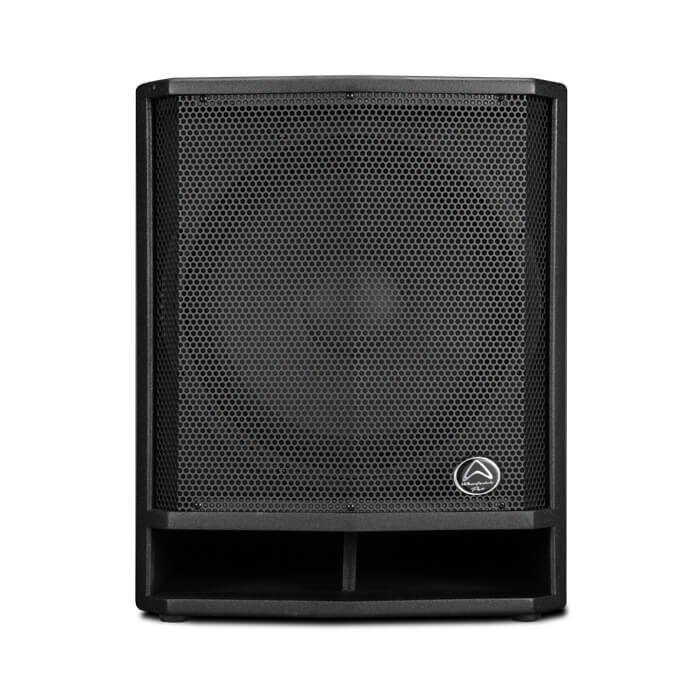

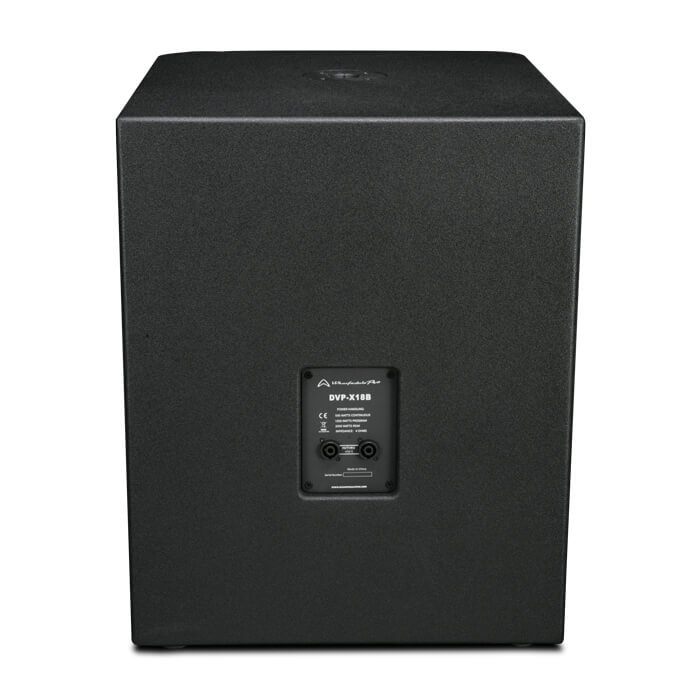

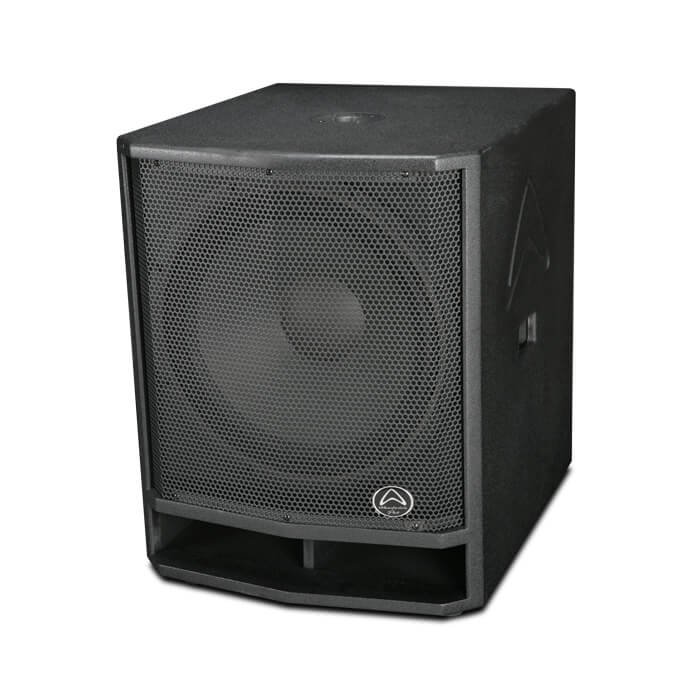

Wharfedale Pro DVP-X18B 18″ Subwoofer 500W RMS
Key Features:
- 500W RMS / 1000W Programme / 2000W Peak
- 30Hz – 150Hz frequency response
- Proprietary enhanced Rhino Rock paint for a chip resistant finish
- High powered LF driver using a double-roll surround
- Fine-tuned crossovers, built in house for audio signal purity and optimised tuning
- Parallel port mouth design creates reflective boundary, maximizing low end punch.
- 18″ passive subwoofer
- 18″ LF driver with 2.5″ voice coil
- 133 dB Max SPL @ 1 meter
7
Items sold in last 3 minutes
29
People watching this product now!
EASY CLEANING
Full range models feature a 90° x 60° Elliptical Waveguide
In real-world terms this means that the higher frequencies can be heard with definition at 90° in the horizontal plane, and 60° in the vertical.
All full range models in the DVP-X series use this same elliptical waveguide design which makes for controllable coverage when using multiple DVP-X series loudspeakers.
routed logo
DVP-X features a routed Wharfedale Pro logo.
It is a logo to be proud of. A logo that lets your audience know that the sound of your even will be of the highest possible quality.
IRIS X Compression drivers
The coil size and electrical sensitivity of a loudspeaker transducer is critical to its performance. Impact-X loudspeakers now include our proprietary IRIS X design which delivers Increased coil Radius and Increased electrical Sensitivity. The radius of the coil ensures smooth heat dissipation during prolonged high volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.
A hot transducer wastes energy, risks damage and distorts. IRIS X reduces this through improved heat dissipation and improved efficiency.
In real-world terms, IRIS X transducers deliver higher SPL with less distortion. They lead the market with specifications and are designed and built entirely within Wharfedale Pro.
Increased Radius Increased Sensitivity
DOUBLE ROLL SURROUND & DRIVER TECHNOLOGY
DVP X18B loudspeakers use the latest in Wharfedale Pro driver technology: Engineers have incorporated a curvilinear, double-roll surround for smooth transitions and stability for low through to mid range frequencies. Combined with 2.5” voice coils for improved thermal dissipation, you can expect consistent delivery at the highest of volumes throughout a performance.
ACOUSTICALLY MATCHED CABINET
The cabinet of the DVP X18B has been developed to work in perfect harmony with the advanced 18″ drive unit within. Special attention has been paid to the acoustic properties of the port and port mouth to ensure a huge bass output with detail and minimised distortion. DVP X18B is coated in the latest generation chip-resistant, Rhino Rock paint.
FINE-TUNED CROSSOVER
The crossovers ensure perfect integration between the drive units and acoustic properties of the cabinet. Electronic components are carefully selected, while over-complex networks have been avoided to maintain a pure and strong audio signal.
SPECIFICATIONS:
| System Type | Passive |
| Configuration | Subwoofer |
| Frequency Response (+/- 3dB) | 35-150Hz |
| Frequency Range (-10dB) | 30-150Hz |
| Sensitivity (2.83v/1m) | 99dB |
| System Rated Impedance | 4Ω |
| Calculated Maximum SPL @1m | 133dB |
| Low Frequency Transducer | |
| Size | 470mm / 18″ |
| Voice coil size | 65mm / 2.5” |
| Rated Impedance | 4Ω |
| LF Power (re:AES-2012) | 500w |
| Power | |
| System Continuous Power | 500w |
| System Programme Power | 1000w |
| System Peak Power | 2000w |
| Crossover Frequency | 150Hz |
| Hardware | 2 x NL4 (speakON compatible) + 1/4″ Jack combo |
| 35mm pole socket | |
| 2 carry handles | |
| Enclosure | |
| Enclosure Material and finish | MDF / Highest grade Rhino Rock |
| Colour Options | Black paint |
| Grille Material & Finish | Steel |
| Dimensions – Unpacked | |
| Height | 650mm / 25.6″ |
| Width Front | 650mm / 25.6″ |
| Width Rear | 650mm / 25.6″ |
| Depth | 639mm / 25.2″ |
| Dimensions – Packed | |
| Height | 740mm / 29.1″ |
| Width Front | 725mm / 28.5″ |
| Width Rear | 725mm / 28.5″ |
| Depth | 614mm / 24.2″ |
| Weight | |
| Net Weight | 35.3kg / 77.7lbs |
| Gross Weight | 41.9kg / 92.2lbs |
