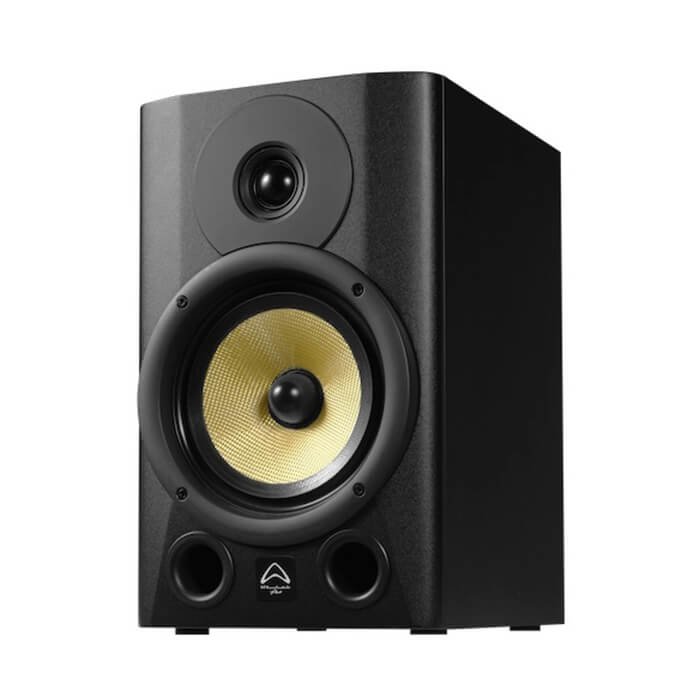

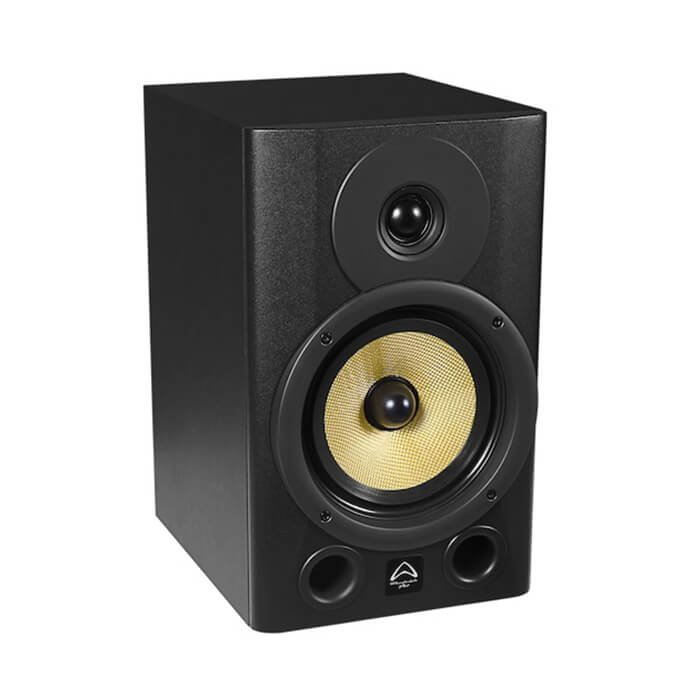

Wharfedale Pro Diamond Studio 7-BT
- 6.5″ Active bi-amplified studio monitor
- 150 watts continuous
- 300 watts peak
- 113 dB Max SPL @ 1 M
- Honest, uncoloured sound
- Bluetooth input with TWS stereo linking
- Balanced inputs – XLR, 6.3 mm combi jack
- RCA stereo inputs
- Class D Bi-amplified.
- Woven fibreglass composite LF cones
3
Items sold in last 3 minutes
40
People watching this product now!
We deliver within 3hrs within in Nairobi and within 24hrs to all major towns in Kenya.
TWS BLUETOOTH
Using the BT Stereo link mode, 2 units of Diamond Studio BT create their own Stereo linked pair.
Diamond Studio BT use TWS (True Wireless Stereo) technology to create a controllable linked pair of speakers from a single Bluetooth input.
SUPER ACCURATE
Diamond Studio -BT monitors are designed to be super accurate.
Experience every nuance… or even every problem with your mix. Diamond Studio BT are honest.
A great mix is still a great mix. A bad mix, is still a bad mix.
Either way, Diamond Studio -BT will let you hear the reality.
SPECIFICATIONS
| MODEL NAME | DIAMOND STUDIO 7-BT | ||
| System Type | Active 6.5” 2-way Bi-Amplified | ||
| Freq. Range (-10 dB) Analog Input | 38 Hz-25 KHz | ||
| Maximum SPL (peak @1 m) | 113 dB | ||
| LF Transducer | 6.5″ Fiberglass composite woofer | ||
| HF Transducer | Silk Soft dome tweeter | ||
| Coil Size (mm / inches) | 25.4 mm / 1” | ||
| High Frequency Coverage (H x V) | 135° x 110° | ||
| Total Power Amplifiers | 150 W | ||
| Low-Frequency Power Amplifier (Class D) | 90 W Continuous / 180 W Peak | ||
| High- Frequency Power Amplifier (Class D ) | 60 W Continuous / 120 W Peak | ||
| Electronic Crossover: | |||
| Crossover Frequency | 2.2 KHz | ||
| Controls | |||
| Equalization (dB) | HF / LF Level Adjust (-2, 0, +1 ,+2) | ||
| System Volume | -∞ to +10 dB | ||
| Amplifier Protection | Yes | ||
| Power On Protection | Power switch on / off mute | ||
| Thermal Protection | Amplifier shutdown, auto reset | ||
| Driver, DC and Short Protection | Yes | ||
| Limiter Indicator | Red LED | ||
| Power Indicator | Green LED/white LED (LOGO) | ||

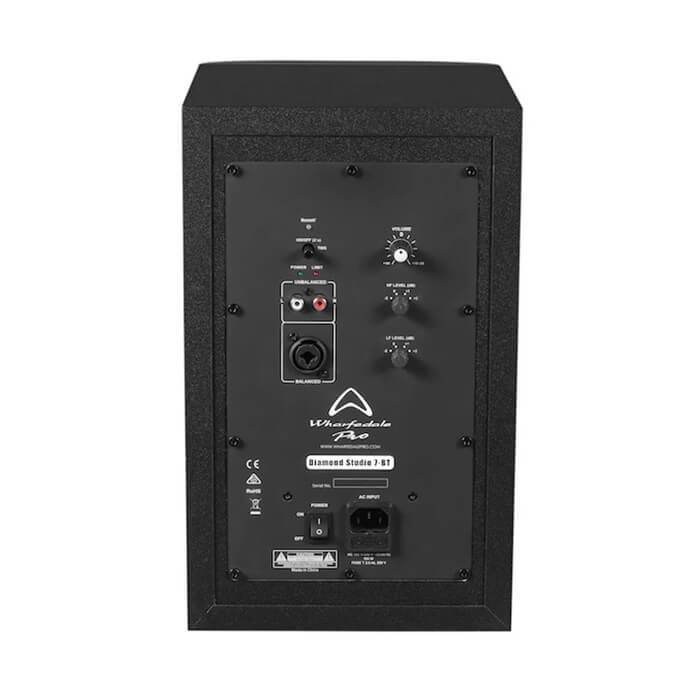

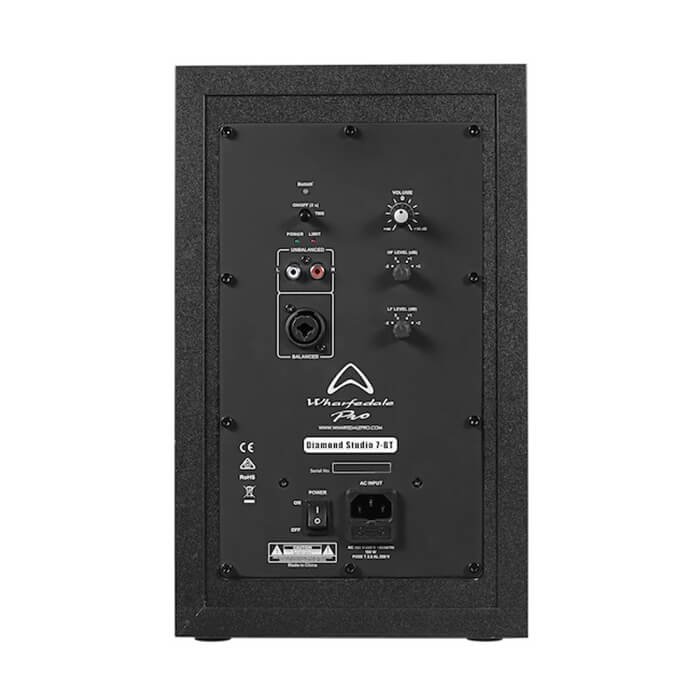

| Input type | Balanced / Unbalanced / Bluetooth | ||
| Input Connectors | TRS JACK / FEMALE XLR/RCA | ||
| AC Power Options | 100 V-240 V | ||
| Power On Indicator | LED | ||
| Cabinet Material | MDF | ||
| Cabinet Colour | black | ||
| Dimensions (Unpacked): | |||
| Height | 340 mm /13.39 in | ||
| Width | 210 mm /8.27″ | ||
| Depth | 260 mm /10.24″ | ||
| Dimensions (packed): | |||
| Height | 400 mm/15.75 in | ||
| Width | 272 mm/ 10.71 in | ||
| Depth | 325 mm / 12.80 in | ||
| Weight | |||
| Net Weight | 6.84 kg / 15.1 lbs | ||
| Gross Weight | 7.82 kg / 17.20 lbs | ||
