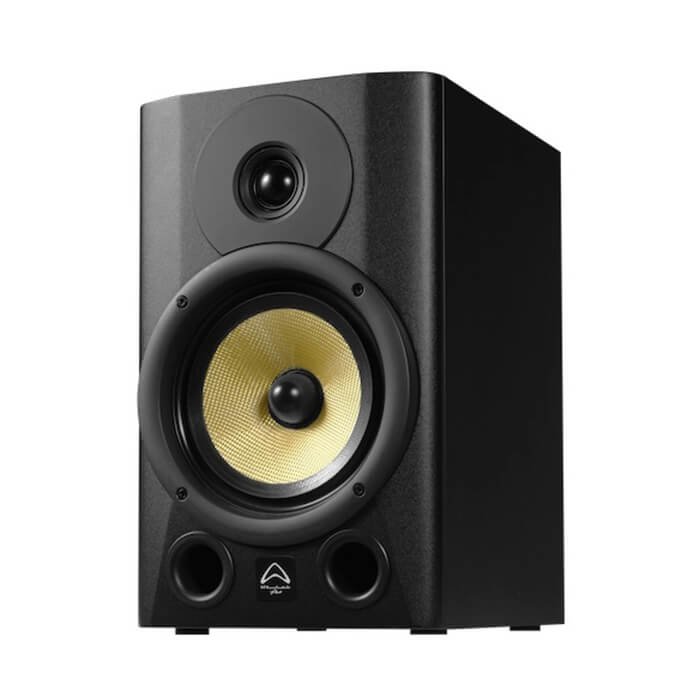

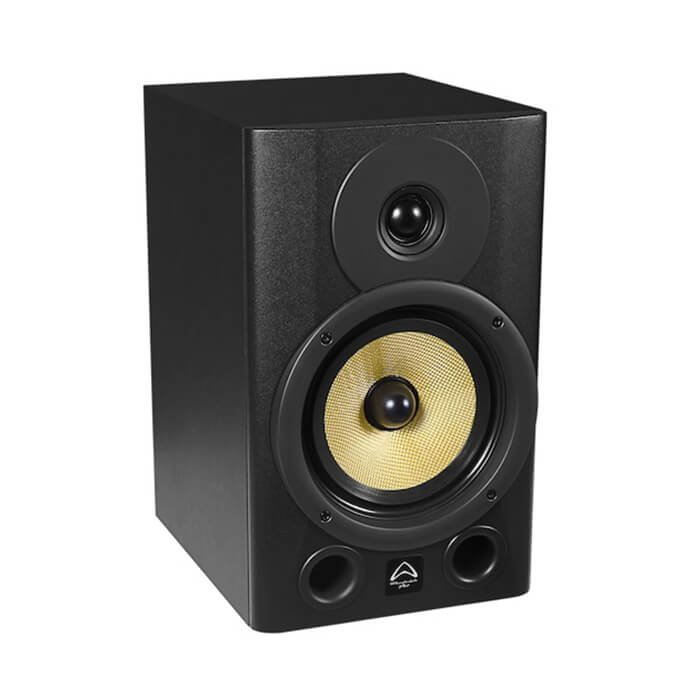

Wharfedale Pro Diamond Studio 7-BT
- 6.5″ Active bi-amplified studio monitor
- 150 watts continuous
- 300 watts peak
- 113 dB Max SPL @ 1 M
- Honest, uncoloured sound
- Bluetooth input with TWS stereo linking
- Balanced inputs – XLR, 6.3 mm combi jack
- RCA stereo inputs
- Class D Bi-amplified.
- Woven fibreglass composite LF cones
7
Items sold in last 3 minutes
56
People watching this product now!
TWS BLUETOOTH
Using the BT Stereo link mode, 2 units of Diamond Studio BT create their own Stereo linked pair.
Diamond Studio BT use TWS (True Wireless Stereo) technology to create a controllable linked pair of speakers from a single Bluetooth input.
SUPER ACCURATE
Diamond Studio -BT monitors are designed to be super accurate.
Experience every nuance… or even every problem with your mix. Diamond Studio BT are honest.
A great mix is still a great mix. A bad mix, is still a bad mix.
Either way, Diamond Studio -BT will let you hear the reality.
SPECIFICATIONS
| MODEL NAME | DIAMOND STUDIO 7-BT | ||
| System Type | Active 6.5” 2-way Bi-Amplified | ||
| Freq. Range (-10 dB) Analog Input | 38 Hz-25 KHz | ||
| Maximum SPL (peak @1 m) | 113 dB | ||
| LF Transducer | 6.5″ Fiberglass composite woofer | ||
| HF Transducer | Silk Soft dome tweeter | ||
| Coil Size (mm / inches) | 25.4 mm / 1” | ||
| High Frequency Coverage (H x V) | 135° x 110° | ||
| Total Power Amplifiers | 150 W | ||
| Low-Frequency Power Amplifier (Class D) | 90 W Continuous / 180 W Peak | ||
| High- Frequency Power Amplifier (Class D ) | 60 W Continuous / 120 W Peak | ||
| Electronic Crossover: | |||
| Crossover Frequency | 2.2 KHz | ||
| Controls | |||
| Equalization (dB) | HF / LF Level Adjust (-2, 0, +1 ,+2) | ||
| System Volume | -∞ to +10 dB | ||
| Amplifier Protection | Yes | ||
| Power On Protection | Power switch on / off mute | ||
| Thermal Protection | Amplifier shutdown, auto reset | ||
| Driver, DC and Short Protection | Yes | ||
| Limiter Indicator | Red LED | ||
| Power Indicator | Green LED/white LED (LOGO) | ||
| Input type | Balanced / Unbalanced / Bluetooth | ||
| Input Connectors | TRS JACK / FEMALE XLR/RCA | ||
| AC Power Options | 100 V-240 V | ||
| Power On Indicator | LED | ||
| Cabinet Material | MDF | ||
| Cabinet Colour | black | ||
| Dimensions (Unpacked): | |||
| Height | 340 mm /13.39 in | ||
| Width | 210 mm /8.27″ | ||
| Depth | 260 mm /10.24″ | ||
| Dimensions (packed): | |||
| Height | 400 mm/15.75 in | ||
| Width | 272 mm/ 10.71 in | ||
| Depth | 325 mm / 12.80 in | ||
| Weight | |||
| Net Weight | 6.84 kg / 15.1 lbs | ||
| Gross Weight | 7.82 kg / 17.20 lbs | ||
