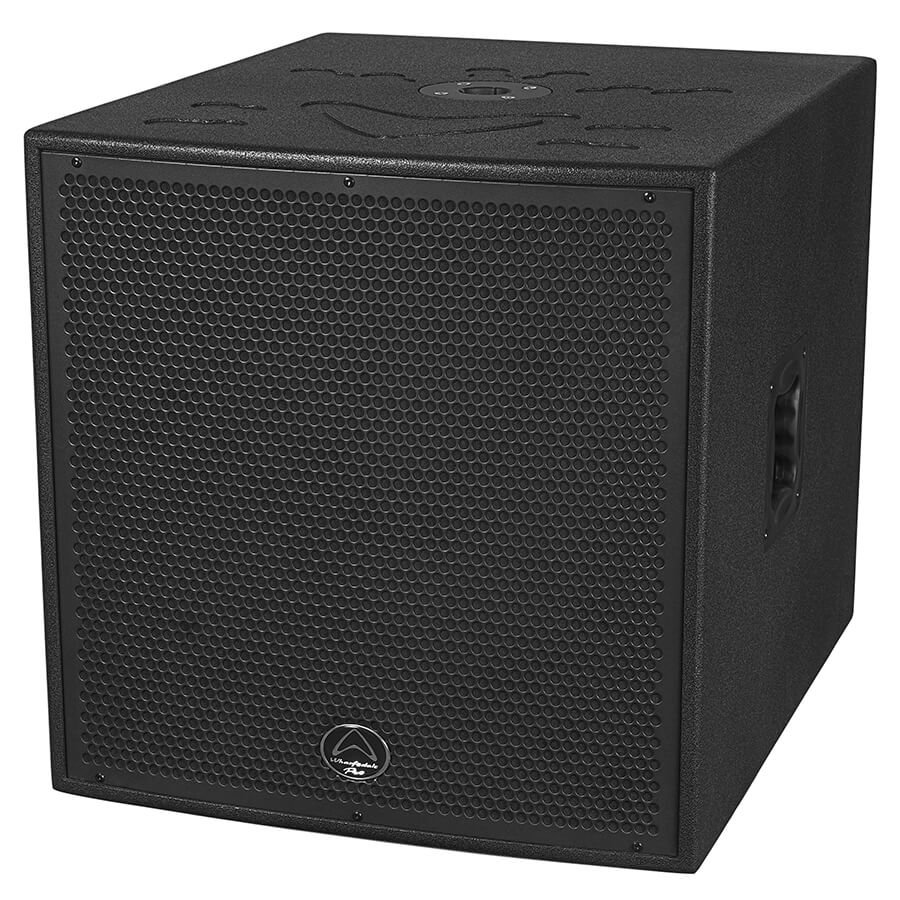

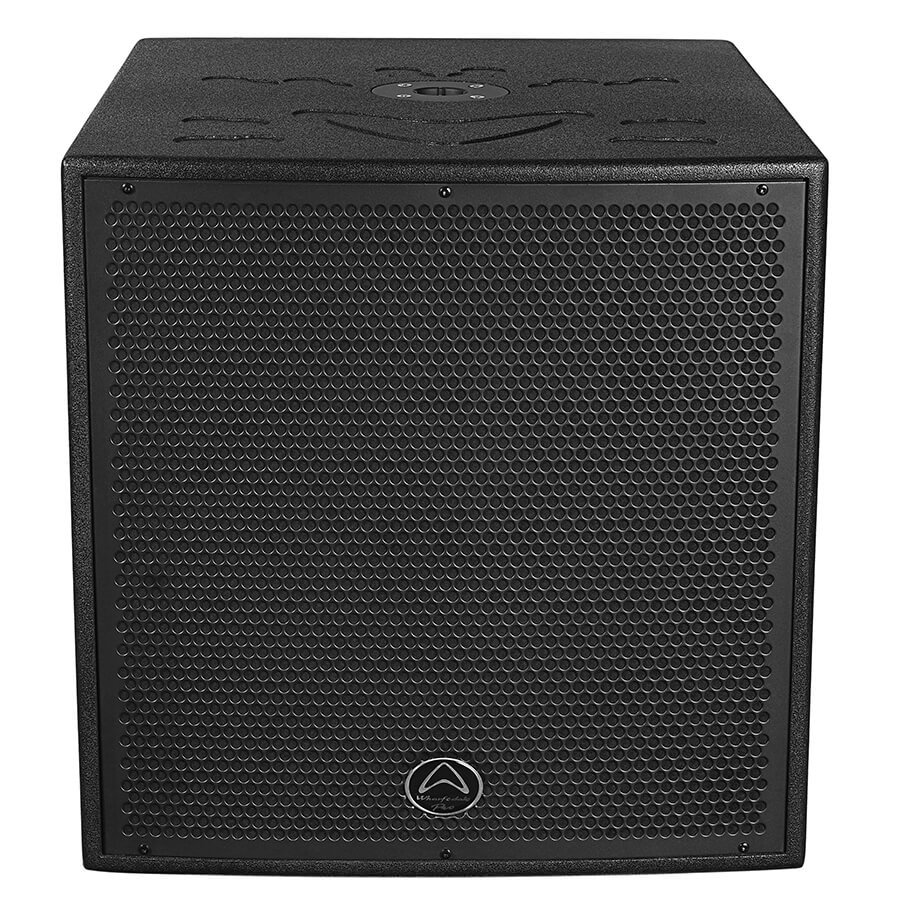

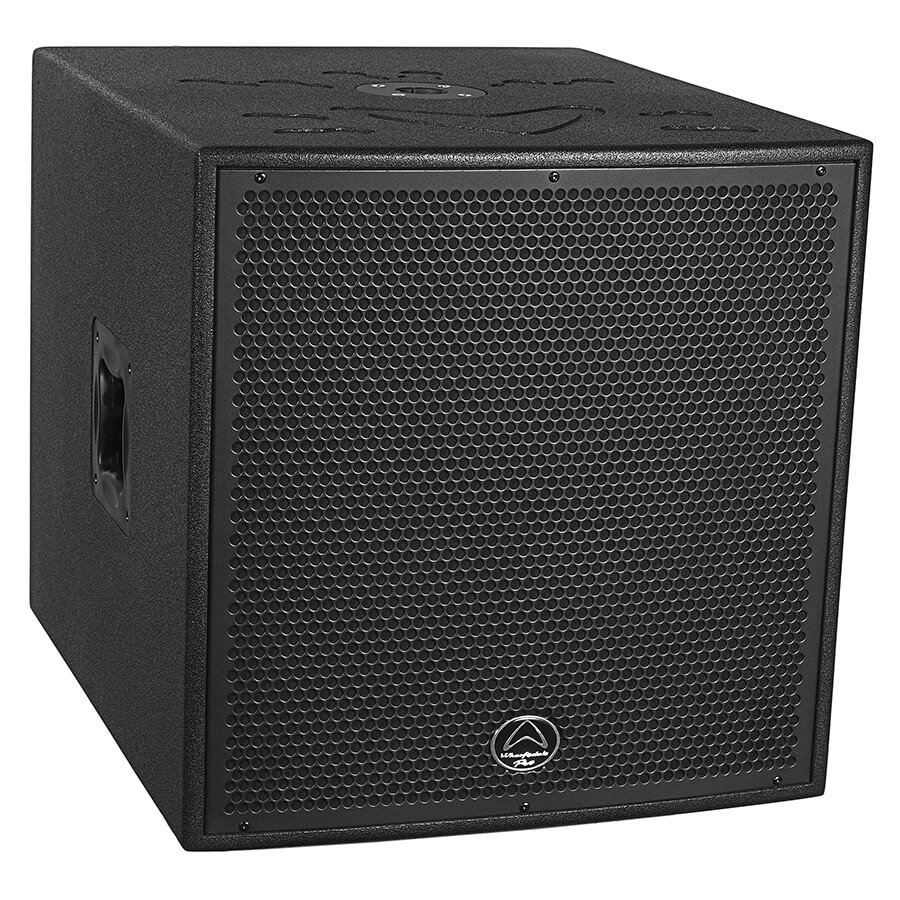

Wharfedale Pro Delta-AX18B Powered Subwoofer
|
|
We deliver within 3hrs within in Nairobi and within 24hrs to all major towns in Kenya.
BIRCH PLYWOOD
Delta-AX subwoofers use premium Baltic birch plywood construction.
Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character.
Delta-AX subs are also covered in our most durable and hard wearing Rhino Rock paint finish. This ensures that a Delta-AX will always look as good as the day you unboxed it.
ROUTED LOGO
Delta-AX subs feature a routed Wharfedale Pro logo.
This fresh design helps to distinguish between the original Delta-A models and the updated Delta-AX models.
It is also a logo to be proud of. A logo that lets your audience know that the sound of your even will be of the highest possible quality.
SUBWOOFERS
The 15″ and 18″ active subwoofers use a single Class D amplifier to drive the LF transducer.
Inside the Delta-AX subwoofers is a highly efficient Class D amplifier.
The amplifier has been perfectly matched to the custom low frequency driver. This perfect combination leads to maximum efficiency and supreme output SPL.
SPECIFICATIONS
| Model Name | DELTA-AX18B | |
|---|---|---|
| System Type | Active 18” Subwoofer | |
| Frequency Response (+/-3 dB) | 38 Hz – 200 Hz | |
| Calculated Maximum SPL @1 m | 132 dB | |
| Low Frequency Transducer – Size (mm / inches) |
470 mm / 18″ | |
| Coil Size (mm / inches) | 101.6 mm / 4″ | |
| Impedance | 8 Ω | |
| Amplifiers | ||
| Low-Frequency Power Amplifier RMS | 1000 w (Class D) | |
| High-Frequency Power Amplifier RMS | NA | |
| Amplifier Protection | Yes | |
| Power On Protection | Power switch on/off mute | |
| Thermal Protection | Amplifier Shut Down. Auto Reset | |
| Low Line Voltage Shut Down | 80% Nominal Line Voltage | |
| Driver Protection | Yes | |
| DC and Short Protection | Yes | |
| Clip Limiter | Turns on Appro x 1000 w Output | |
| Limiter Indicator | Red LED | |
| Power Indicator | Green LED | |

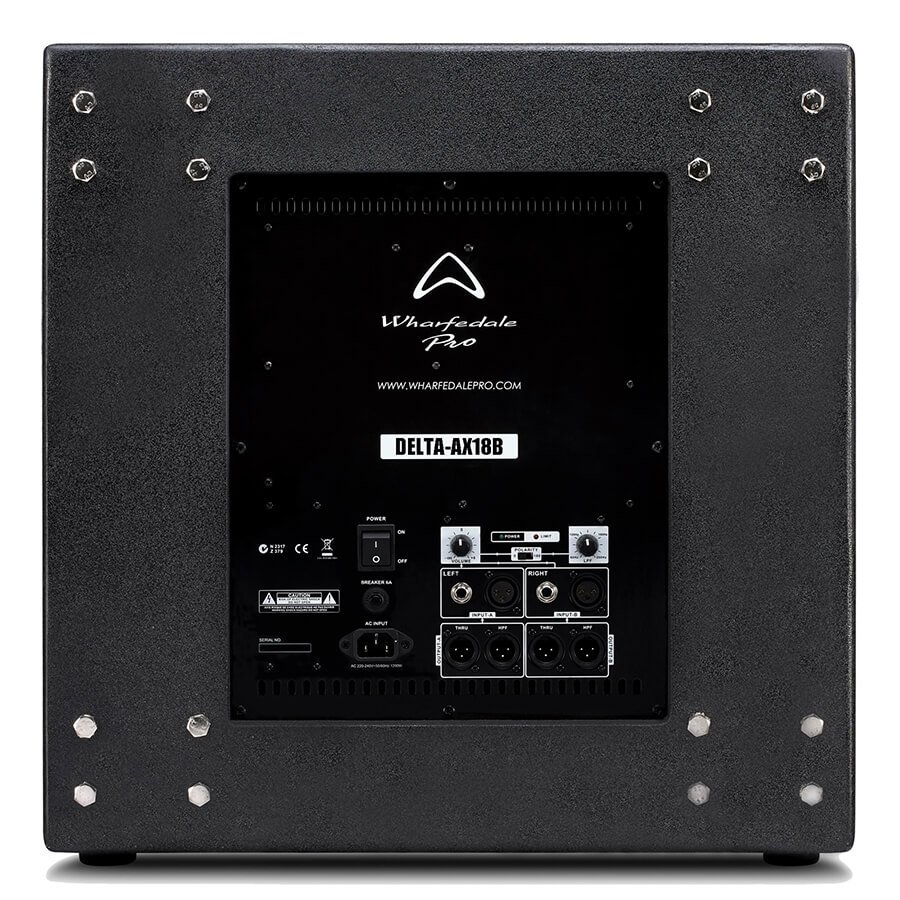

| Connectors | ||
| Input A – type | Balanced | |
| Input Sensitivity | Line:0 dBu | |
| Maximum Input Level | 22 dBu | |
| Input Connector | TRS jack and socket XLR | |
| Input Impedance | Balanced:20 KΩ Unbalanced:10 KΩ | |
| Line Output Connector | pin XLR Connector | |
| Impedance Balanced | Balanced: 200 Ω Unbalanced:100 Ω | |
| Loop Gain | 0 dB | |
| AC Power details – Power Supply | High Efficiency SMPS | |
| AC Power Options | AC100-120 V~ / 220-240 V~,50/60 HZ | |
| Power On Indicator | Green LED | |
| Hardware – Rigging | ||
| Enclosure Material and finish | 15 mm Plywood | |
| Colour Options | Black Rhino Paint | |
| Grille Material & Finish | ||
| Unpacked dimensions – Height | 539 mm / 21.22″ | |
| Width (Front) | 539 mm / 21.22″ | |
| Width (Back) | 539 mm / 21.22″ | |
| Depth | 650 mm / 25.59″ | |
| Packed Dimensions – Height | 624 mm / 24.57″ | |
| Width (Front) | 722 mm / 28.43″ | |
| Width (Back) | 722 mm / 28.43″ | |
| Depth | 611 mm / 24.06″ | |
| Net Weight (kg / lbs) | 38.4 kg / 84.48 lbs | |
| Gross Weight (kg / lbs) | 44.3 kg / 97.46 lbs |
