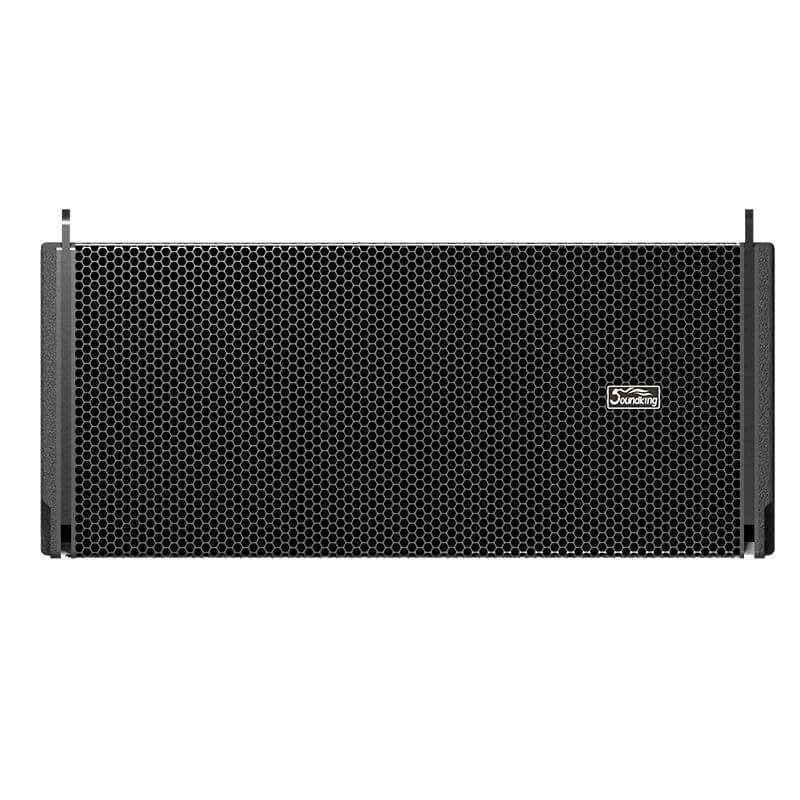

SoundKing G310 Passive Three-Way Line Array Speaker
High-Performance Passive Three-Way Line Array Speaker for Superior Sound Coverage
G310 is a high-performance three-way line array speaker, featuring dual 10-inch neodymium magnetic units. This speaker is designed for versatility, offering a compact 706mm-wide cabinet and a lightweight design at just 34kg. Despite its compact size, the G310 delivers an impressive 142dB peak SPL, making it suitable for both small and medium-sized venues as well as large-scale events. Its advanced three-way coaxial tweeter arrangement ensures superior sound quality with enhanced clarity and long-distance coverage.
3
Items sold in last 3 minutes
64
People watching this product now!
We deliver within 3hrs within in Nairobi and within 24hrs to all major towns in Kenya.
Product Description
- Drivers:Â Dual 10-inch neodymium magnetic units for high, mid, and low frequencies
- SPL:Â 142dB peak pressure level output
- Cabinet Dimensions:Â 706mm wide, weighing 34kg
- Design:Â Compact and lightweight, easier to handle and install compared to other dual 10-inch two-way line array speakers
- Technology:Â Advanced three-way coaxial tweeter arrangement, offering precise and pleasing sound reproduction
- Application:Â Ideal for stadiums, theaters, multifunctional halls, and medium to large performance markets. Perfect for events requiring high sound pressure levels and long-distance coverage, up to 100 meters.
The G310 is part of the high-end line array speaker range, offering superior sound effects, higher power, and greater sound pressure levels, thanks to its three-way design.
Introduction
- The G310 line array speaker is a large 2-ch driven 3-way system. Provides a frequency range of 50Hz-20KHz. Two Italian B&C custom 76mm (voice coil) ferromagnetic tweeter compression units, an 8-inch ferromagnetic midrange unit and two 10-inch ferromagnetic woofers form a combination with a great dynamic margin, and greatly reduce the weight of the cabinet while provides a very high sound pressure ratio.
- The mid-low transducer of the G310 uses a pair of high-power 10-inch paper cone ferromagnetic woofers. The mid-frequency part consists of a high-sensitivity 8-inch ferromagnetic mid-range unit, which is installed behind the tweeter to form a coaxial structure. The midrange front-loaded horn improves directivity and increases midrange high-end sensitivity, while greatly reducing driver distortion, creating a low-curvature wavefront. The high-frequency transducer uses two Italian B&C custom 76mm (voice coil) ferromagnetic tweeter compression units, and converts the high-frequency audio waveform from spherical wave to equal-phase plane wave through a plane wave converter, which greatly reduces the high-frequency interference effect and makes Sound clarity is greatly improved at long distances. At the same time, a 90-degree exponential curve constant-direction horn is combined to generate a consistent wavefront.
- The enclosure of G310 is trapezoidal, and the gap between the enclosures has been reduced to a minimum. The adjustable angle of each enclosure is 0-10 degrees, and can be adjusted every degree. The G310 is equipped with a precision flying system.

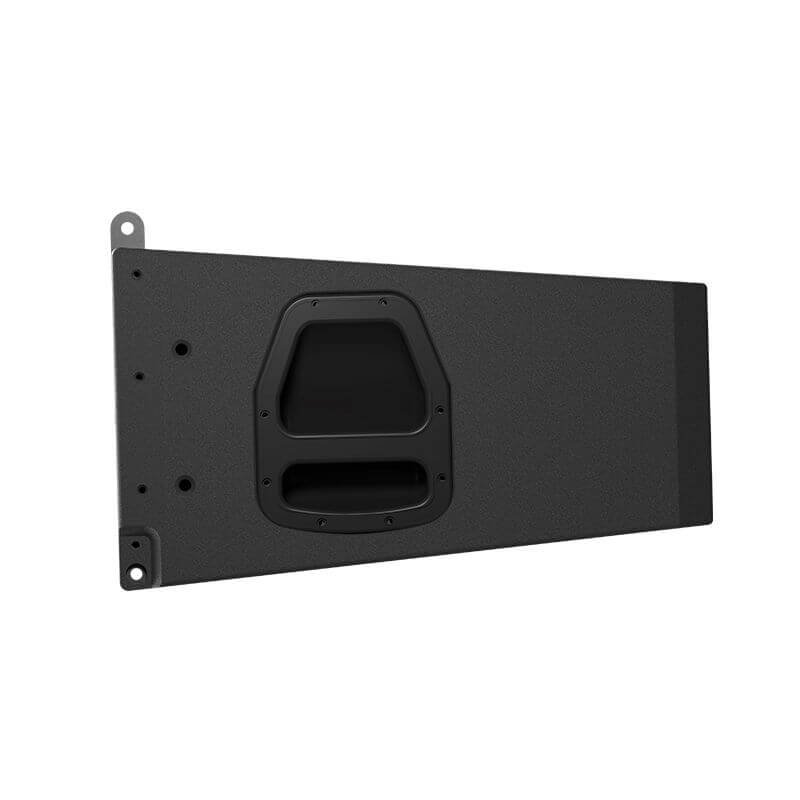

- The angle of connection between the enclosures can be adjusted at any angle between 0 and 10 degrees to meet the needs of different occasions. It adopts a flush embedded handle and is installed on the surface of the speaker. The handle is completely suitable for ergonomics, beautiful and easy to carry. The surface is wear-resistant black gold sand paint.
Applications:
- Large and medium mobile performances
- Large and medium sports venues
- Theaters and auditoriums, etc.
Installation diagram
Dimensions:
Product Parameter
| Model: | G310 | Type: | PASSIVE THREE-WAY LINE ARRAY MODULE |
| Power Source: | PASSIVE | Components: | 2 x 10″ Neodymium woofer, 1 x 8″ Neodymium midrange, 2 x 3″ Neodymium compression driver |
| Impedance in ohm: | 16Ω(LF), 16Ω(MHF) | H Coverage per Element: | 90° |
| V Coverage per Element: | 10° | Frequency Response Range (-): | 50 Hz(-10dB) |
| Frequency Response Range (+): | 20k Hz(-10dB) | RMS Power(W): | 900 W(LF), 400 W(MHF) |
| SPL max. (1m, Free field): | 135 dB(LF), 142 dB(MHF) | Built-in Crossover: | NO |
| Housing: | Plywood | Hanging Point(s): | 3 |
| Elements Angle: | 3 | Elements up to (single array): | – |
| Height in mm: | 304 mm | Width in mm: | 706 mm |
| Depth in mm: | 526 mm | Weight in kg: | 34 kg |
