Peavey CS 4000 2U
Peavey CS 4000 2U - Image 2

Peavey CS 4000 2U

The CS4000 Professional Power Amplifier by Peavey is a 2RU rugged unit that incorporates DDT (Distortion Detection Technique) circuitry designed to deliver trouble-free operation into loads as low as 2Ω, protect drivers and ensure sonic integrity even under difficult loads and power conditions. It features tunnel-cooled heat sinks and dual-speed DC fans which lower the overall operating temperature, resulting in longer output transistor life. The Peavey CS4000 amplifier features power points up to 4000W.

Order on WhatsApp
Call 0740418548
Order Via Email
7 Items sold in last 3 minutes
73 People watching this product now!

We deliver within 3hrs within in Nairobi and within 24hrs to all major towns in Kenya.

Building on the reputation of the world-famous Peavey CS 800, which conquered the power amp market in the 1970s, the CS Series is the global standard bearer for workhorse reliability. Over the years, these amps have benefited from some of Peavey’s most popular audio innovations, including our exclusive DDT compression/anti-clipping protection. With its 2 RU design and power points up to 4080 watts, this latest evolution of the CS Series is leaner, louder and lighter than ever.

FEATURES

  • 2 temperature-dependant variable speed fans
  • 2000 watts (rms) per channel at 2 ohms
  • 1350 watts (rms) per channel at 4 ohms
  • 800 watts per channel at 8 ohms
  • 4000 watts at 4 ohms bridged
  • 5-year warranty
  • 2-rack-space stereo power amp featuring DDT™
  • Packed Weight: 50.01 lb (22.68 kg)
  • Packed Length: 22.5″ (57.15 cm)
  • Packed Width: 21″ (53.34 cm)
  • Packed Height: 6″ (15.24 cm)

SPECIFICATIONS:

Rated Power Bridged
4,000 W @ 1 kHz at <0.1% T.H.D. @ 4 Ω
Rated Power
  • 2 x 2 Ω: 2,000 W per channel @ 1 kHz <0.1% T.H.D. both channels driven
  • 2 x 4 Ω: 1,350 W per channel @ 1 kHz at <0.05% T.H.D. both channels driven
  • 2 x 8 Ω: 800 W per channel @ 1 kHz at <0.05% T.H.D. both channels driven
  • 1 x 2 Ω: 2,550 W @ 1 kHz at <0.1% T.H.D.
  • 1 x 4 Ω: 1,600 W @ 1 kHz at <0.05% T.H.D.
  • 1 x 8 Ω: 900 W @ 1 kHz at <0.05% T.H.D.
Minimum Load Impedance
2 Ω
Maximum RMS Voltage Swing
93 V
Frequency Response
10 Hz – 100 kHz; +0, -2 dB at 1 W
Power Bandwidth
10 Hz – 35 kHz; +0, -3 dB at rated 4 Ω power
THD
  • 2 x 2 Ω: <0.2% @ 1,500 W per channel from 20 Hz – 20 kHz
  • 2 x 4 Ω: <0.1% @ 1,150 W per channel from 20 Hz – 20 kHz
  • T2 x 8 Ω:<0.1% @ 750 W per channel from 20 Hz – 20 kHz
Input CMRR
> – 75 dB @ 1 kHz
Voltage Gain
x 40 (32 dB)
Cross Talk
> -70 dB @ 1 kHz at rated power @ 8 Ω
Hum & Noise
> -108 dB, “A” weighted referenced to rated power @ 8 Ω
Slew Rate
> 15 V / us
Damping Factor (8 Ω)
> 500:1 @ 20 Hz – 1 kHz
Phase Response
+5° to – 12° from 20 Hz – 20 kHz
Input Sensitivity
1.84 V +/- 3% for 1 kHz 4 Ω rated power, 1.58 V +/- 3% for 1 kHz 2 Ω rated power
Input Impedance
15 kΩ, balanced
Current Draw
  • At 1/8 power: 1,825 W @ 2 Ω, 1,185 W @ 4 Ω, 720 W @ 8 Ω
  • At 1/3 power: 4,535 W @ 2 Ω, 2,975 W @ 4 Ω, 1,835 W @ 8 Ω
Cooling

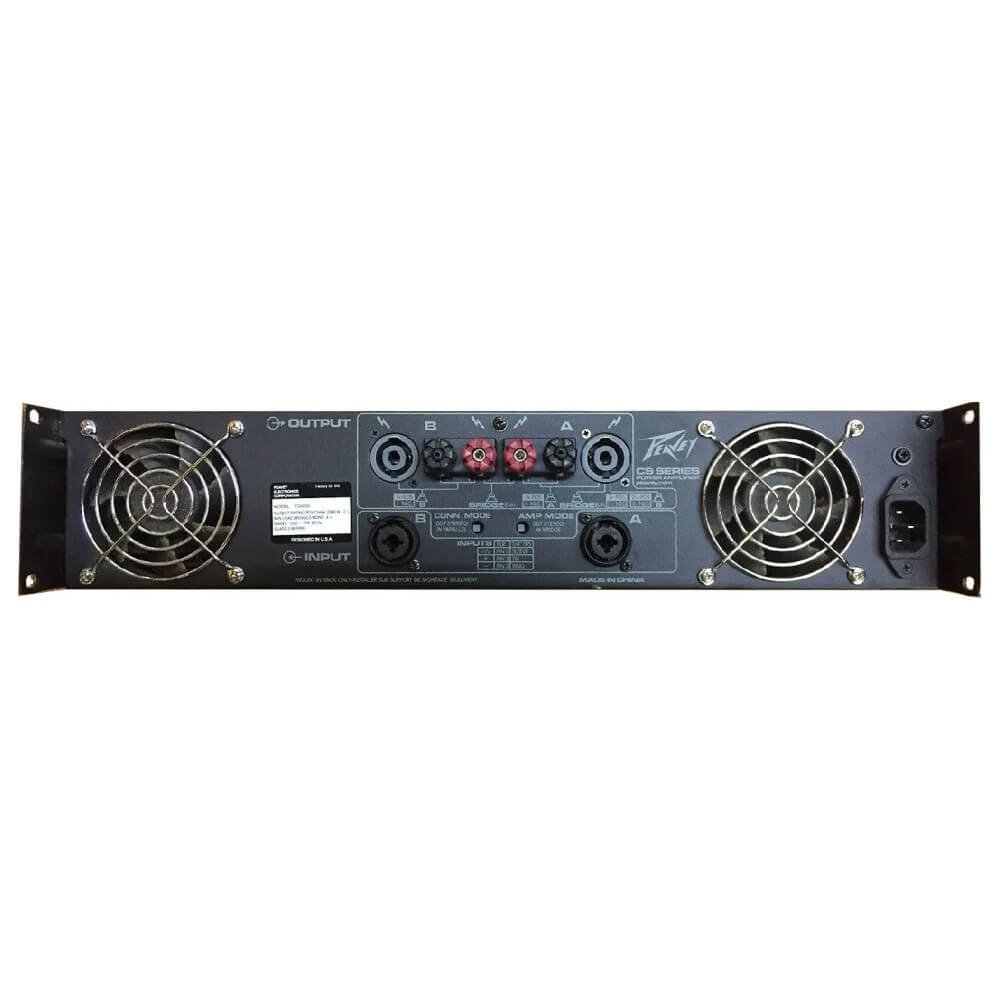

Two back panel temperature dependent variable speed 80 mm DC fans
Controls
2 front panel attenuators, rear panel mode switches
Indicator LEDs
2 DDT (clip limiting), 2 signal presence, 2 active status
Protection
Thermal, DC, turn-on bursts, subsonic, incorrect loads
Input Connectors
Input A: combi XLR and 1/4″ (6.3 mm) phone Input B: combi XLR and 1/4″ (6.3 mm) phone
Output Connectors
Output A: speakon and binding post speaker Output B: speakon and binding post speaker
Construction
14 galvanized steel with cast front panel and cast handles
Dimensions
3.5 x 19 x 4.81 + 1.25″ (89 x 483 x 376 + 32 mm) for rear support ears and connectors
1.5″ (38 mm) for handle depth
Weight
43.3 lb (19.64 kg)
