The Peavey CS 3000 – Stereo Power Amplifier (1025W per Channel at 4 Ohm) is a 2RU rack mountable amp designed for live sound reinforcement applications such as for parties, clubs, houses of worship and concerts. The amplifier is capable of outputting 3050W bridged at 4Ω, 1500W per channel at a 2Ω, 1025W per channel at 4Ω, and 650W per channel at 8Ω with a frequency response of 10 to 100,000 Hz.

Order on WhatsApp
Call 0740418548
Order Via Email
2 Items sold in last 3 minutes
67 People watching this product now!

We deliver within 3hrs within in Nairobi and within 24hrs to all major towns in Kenya.

Building on the reputation of the world-famous Peavey CS 800, which conquered the power amp market in the 1970s, the CS Series is the global standard bearer for workhorse reliability. Over the years, these amps have benefited from some of Peavey’s most popular audio innovations, including our exclusive DDT compression/anti-clipping protection. With its 2RU design and power points up to 4080 watts, this latest evolution of the CS Series is leaner, louder and lighter than ever.

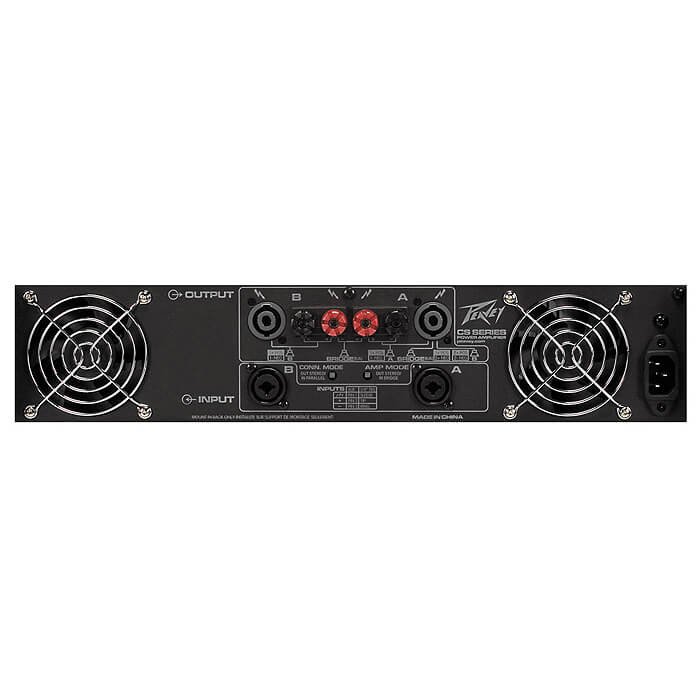

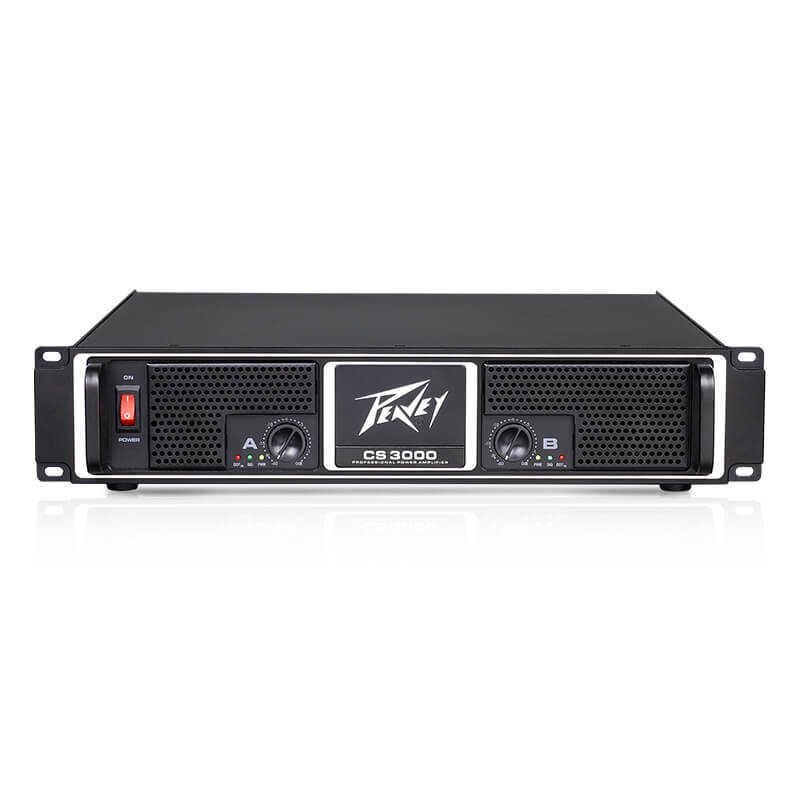

The unit can be operated in either stereo or switched to bridged mono mode. It includes Peavey’s Distortion Detecting Technique Limiting (DDT) circuitry as well as LFC impedance sensing, thermal, short circuit, DC voltage, and Turn-On/Turn-Off protection circuits. The front panel includes two input attenuators for controlling the level as well as LED indicator lights for power, signal, and DDT. For I/O, the back panel features combination 1/4″ and XLR inputs, Speakon outputs, and binding post outputs.

FEATURES

  • 2 temperature-dependant variable speed fans
  • 1550 watts (rms) per channel at 2 ohms
  • 1065 watts (rms) per channel at 4 ohms
  • 650 watts per channel at 8 ohms
  • 3100 watts at 4 ohms bridged
  • 5-year warranty
  • 2-rack-space stereo power amp featuring DDT™
  • Packed Weight: 46.01 lb (20.86 kg)
  • Packed Length: 22.5″ (57.15 cm)
  • Packed Width: 21″ (53.34 cm)
  • Packed Height: 6″ (15.24 cm)

SPECIFICATIONS:

Rated Power
3,050 W at 1 kHz <0.1% THD Bridged
2x 1500 W per channel at 1 kHz at 2 Ω ( <0.1% THD both channels driven)
2x 1025 W per channel at 1 kHz at 4 Ω ( <0.1% THD both channels driven)
2x 650 W per channel at 1 kHz at 8 Ω ( <0.1% THD both channels driven)
1x 2000 w per channel at 1 kHz at 2 Ω ( <0.1% THD)
1x 1275 w per channel at 1 kHz at 4 Ω ( <0.1% THD)
1x 750 W per channel at 1 kHz at 8 Ω ( <0.1% THD)
Minimum Load Impedance
2 Ω
RMS Voltage Swing
86 V
Frequency Response
10 to 100,000 Hz, +0, -1.5 dB at 1 W
Power Bandwidth
10 to 35,000 Hz, +0, -3 dB at rated 4 Ω power
THD
2x 2 Ω: <0.20% at 1200 W per channel from 20 to 20,000 Hz
2x 4 Ω:<0.10% at 925 W per channel from 20 to 20,000 Hz
2x 8 Ω:<0.10% at 600 W per channel from 20 to 20,000 Hz
CMRR
> -55 dB at 1,000 Hz
Voltage Gain
x40 (32 dB)
Crosstalk
> -55 dB at 1,000 Hz with rated power 8 Ω
Hum and Noise
> -109 dB, “A” weighted referenced to rated 8 Ω power
Slew Rate
15 V/uS
Damping Factor (8 Ω)
> 500:1 at 20 to 1,000 Hz
Phase Response
+5 to -15 degrees from 20 to 20,000 Hz
Input Sensitivity
1.6 V ±3% for 1,000 Hz, 4 Ω rated power,
1.37 V ±3% for 1,000 Hz at 2 Ω rated power
Input Impedance
15 kΩ, balanced
Current Draw
At 1/8 power: 1540 W at 2 Ω, 1000 W at 4 Ω, 610 W at 8 Ω
At 1/3 power: 3,650 W at 2 Ω, 2510 W at 4 Ω, 1535 W at 8Ω
Cooling
Two back panel temperature dependent variable speed 80 mm DC fans
Controls
2 front panel attenuators, rear panel mode switch, rear panel mode switch
Indicator LEDs
2x DDT (clip limiting)
2x Active status/power
2x Signal presence
Protection
Thermal
DC
Turn-on bursts
Subsonic
Incorrect loads
Connectors
2x Combination XLR and 1/4″ inputs
2x Speakon output
2x Binding post speaker output
15 A IEC mains connector
Construction
16 gauge steel with cast front panel and cast handles
Dimensions
3.5 x 19 x 14.8 + 1.25″ for rear support ears (88.9 x 483 x 376 +31.8 mm for rear support ears)
+1.50″ (38.1 mm) for handle depth
Weight
39.8 lb (14.8 kg)
