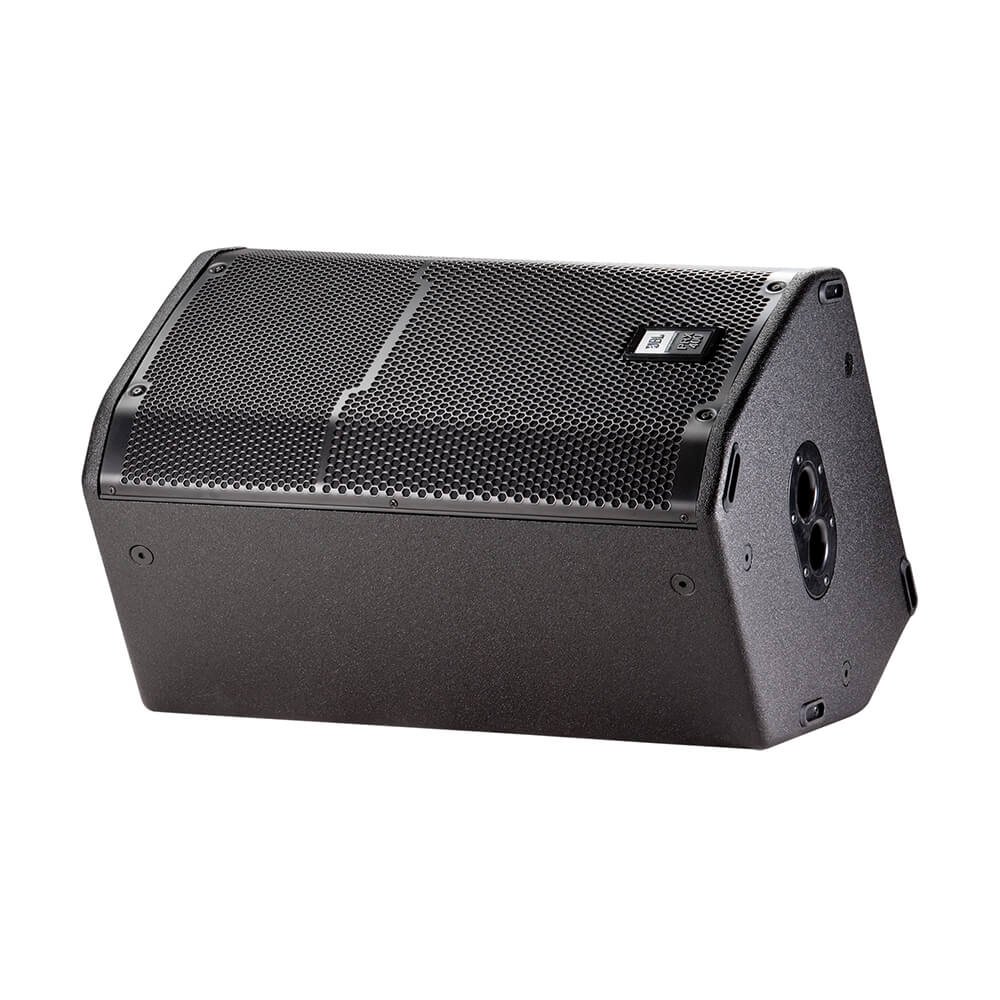

JBL PRX412M 12″ Two-Way Stage Monitor and Loudspeaker
PRX412M is a portable, twelve-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.
We deliver within 3hrs within in Nairobi and within 24hrs to all major towns in Kenya.

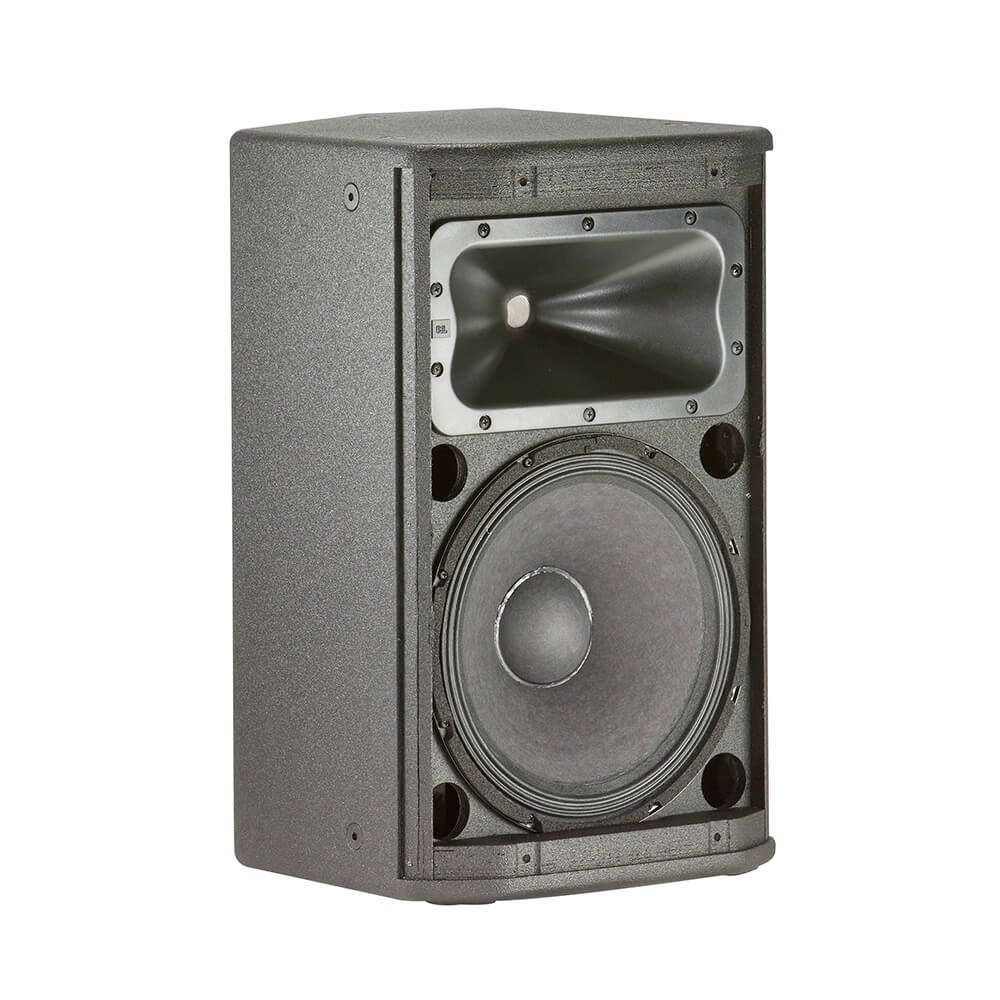

The PRX412M is a premium, utility/monitor speaker. The PRX412M uses a 305 mm (12 in) woofer and a 2414H-C 25 mm (1 in) polymer diaphragm compression driver for 300 watts (continuous) power capacity. A 90° x 50° horn provides smooth, even coverage whether used in the vertical (mains) or horizontal (monitor) orientation.

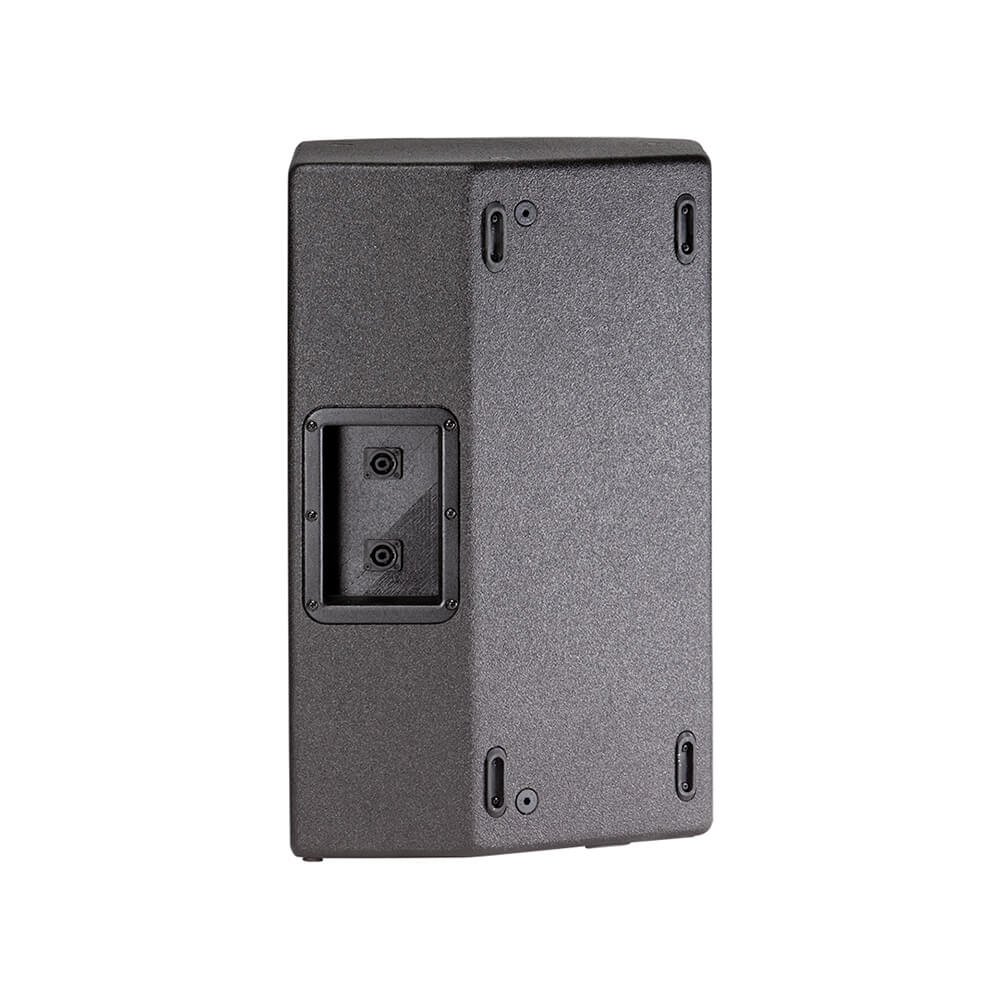

NL-2 and ¼” phone combination connectors are provided. A passive network provides accurate reproduction throughout the cross-over region.
For use on a tripod or over a subwoofer, JBL’s dual angle pole mount is included. This feature allows the speaker to be mounted in a vertical position or with a 10° down tilt for optimum audience coverage.
The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL’s rugged DuraFlex™ finish. The distinctive 16-gauge steel grille is CNC-machined for precision. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.
Features
- 90° x 50° coverage for even and smooth response on and off axis
- Dual-angle pole socket for applications requiring tripod mounting
- Heavy Duty 16 gauge protective screen backed steel grille
- Tough DuraFlex™ enclosure finish
- Utilizes twelve M10 suspension points for safe deployment in light duty installations.
- SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.
Applications
- Speech reinforcement
- Live performance stage monitoring
- Reinforcement of vocal and acoustic music
- High-performance satellite speaker for use with subwoofers
Specifications
| Frequency Range (-10dB) | 50 Hz – 20 kHz |
| Frequency Response (±3 dB) | 62 Hz – 19 kHz |
| Coverage Pattern | 90° x 50° nominal |
| System Sensitivity | 95 dB SPL (1w@1m) |
| Power Rating, Pink Noise | 300 W / 600 W / 1200 W(Continuous/Program/Peak) |
| Maximum SPL (1m) | 126 dB SPL peak |
| Nominal Impedance | 8 ohms |
| Dimensions (H x W x D) | 574 mm x 353 mm x 399 mm (22.6 in x 13.9 in x 15.7 in) |
| Net Weight | 16 kg (35 lbs.) |
| Inputs | Parallel Neutrik® Speakon® NL-2 / ¼” phone combo jacks |
| Enclosure | Duraflex coated plywood |
